In the world of metalworking, precision is everything. One of the most common questions from distributors and end-users is: "What is the correct RPM for my drill bit?" Setting the right speed is the difference between a clean hole and a ruined tool. If the speed is too high, the friction generates excessive heat, leading to a "burned" tip. If it is too low, efficiency drops, and you risk snapping the bit due to excessive torque.
Understanding the Basics: Cutting Speed vs. RPM
Before calculating the speed, you must understand Cutting Speed Vc. This represents the velocity at which the cutting edge of the drill bit moves across the surface of the workpiece.
While the Cutting Speed is determined by the material of the workpiece, the RPM (Revolutions Per Minute) is the setting you actually adjust on your drill press or CNC machine.

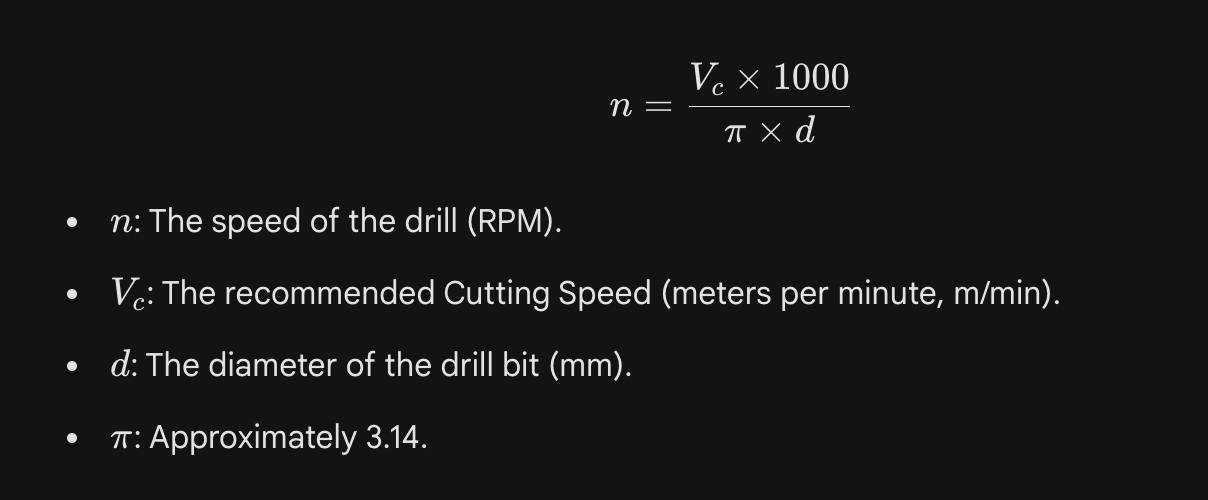

The Mathematical Formula for Precision
To find the exact RPM required for your specific task, professional engineers use the following standard formula:

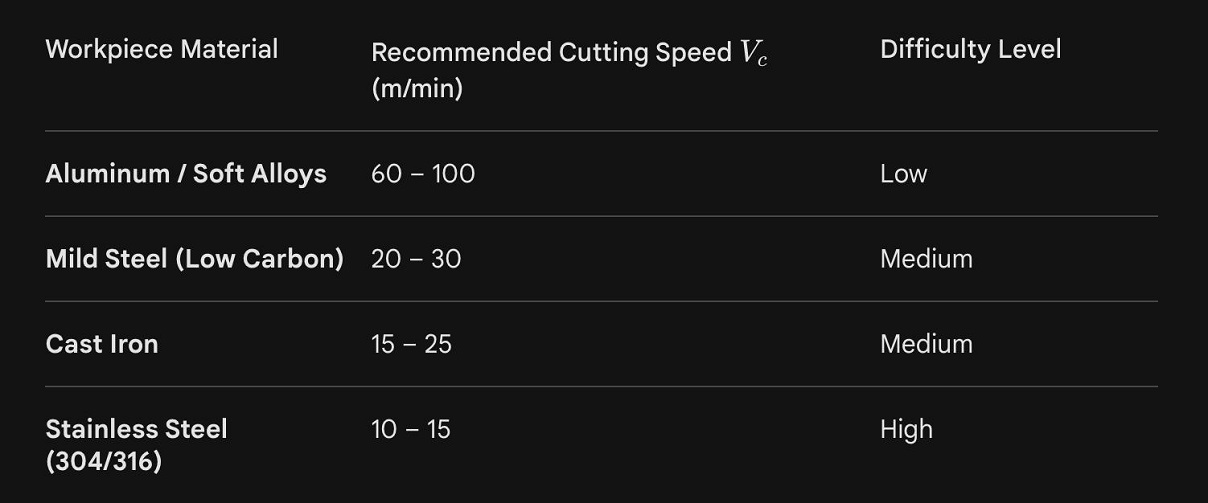

Industry Standard Reference Data
The following data is based on internationally recognized engineering standards (such as ISO 3685 and DIN 1414) for High-Speed Steel (HSS) tooling. These values serve as the global benchmark for metalworking safety and efficiency.
Pro Tip: When using HSS-Co (Cobalt) drill bits, you can generally increase these speeds by 20% due to the material's superior heat resistance.
3 Critical Factors Influencing Your Results
Beyond the formula, three external factors will determine your success:
- Heat Management and Lubrication
Heat is the primary enemy of HSS. Using a high-quality cutting oil or coolant allows you to operate at the higher end of the recommended RPM range. Without lubrication, you must stay at the lower "safe" end of the scale to prevent the steel from softening.
- Chip Evacuation (The "Peck" Method)
For deep holes, the RPM must be balanced with chip removal. If chips (the metal curls) cannot escape the flutes, they will clog and overheat the bit. We recommend "peck drilling"—retracting the bit periodically to clear debris.
- Machine Stability
If you are using a hand-held power drill, always use a lower RPM than the calculated value. Hand-held tools have more vibration and less stability than a fixed drill press, which increases the risk of the bit "walking" or breaking.
Conclusion
Using the correct RPM is the easiest way to extend the life of your Jiacheng Tools products. By following these international standards, you ensure that your HSS drill bits remain sharp, your holes remain precise, and your production costs stay low.
