When drilling into metal, one of the most frustrating problems is encountering a drill bit that slips or "walks" across the surface at the start. In the industry, this issue is known as drill bit wandering (or walking).
Wandering prevents the creation of a perfectly concentric hole. This seemingly minor issue often leads to significant problems: inaccurate hole positioning, poor assembly alignment, damaged workpieces, and scrapped parts. This is especially true when working with challenging materials like stainless steel or thin sheet metal.
So, why does drill bit wandering happen—and more importantly, how can professional operators prevent it? This guide, provided by Jiacheng Tools, a leading HSS drill manufacturer, details the causes and solutions.
1. Why Do Drill Bits Wander? (Understanding Chisel Edge Failure)
The root cause of drill bit wandering is the inability of the drill point to stabilize and engage the material upon first contact. The bit, spinning rapidly, seeks the path of least resistance on the surface before its cutting edges can bite.
Common environmental reasons for walking include:
• Ultra-smooth surfaces: Materials like stainless steel or polished sheet metal offer no natural traction.
• Insufficient initial stability: The drill point configuration cannot self-center.
• Incorrect drilling angle: Applying pressure off-axis forces the bit sideways.
• Unsecured workpieces: Vibration from an unclamped part allows the bit to dance.
From a tool geometry perspective, standard 118-degree drill bits are particularly prone to wandering because they feature a wide chisel edge. This center point does not actually cut; it rubs the material, creating significant initial thrust resistance and pushing the bit off-center.
2. Five Common Mistakes (That Cause 90% of Problems)
Many cases of precision failure are caused by technique rather than the tool itself. Avoid these common mistakes:
• ❌ Skipping the pre-marking step: The bit has zero guidance on a smooth surface.
• ❌ Using general-purpose 118° points on hard alloys: These possess low self-centering capability.
• ❌ Applying too much pressure immediately: This causes instability and "jumping" before engagement.
• ❌ Neglecting to clamp the workpiece: Vibration is the enemy of accuracy.
• ❌ Drilling at maximum RPM from the start: Excessive speed increases surface skating risk.
3. Proven Methods to Prevent Drill Bit Wandering
✅ Use a Center Punch or Spot Drill
This is the simplest, most effective analog solution. Creating a small indentation (dimple) physically guides the chisel edge of the drill bit, preventing it from skidding.

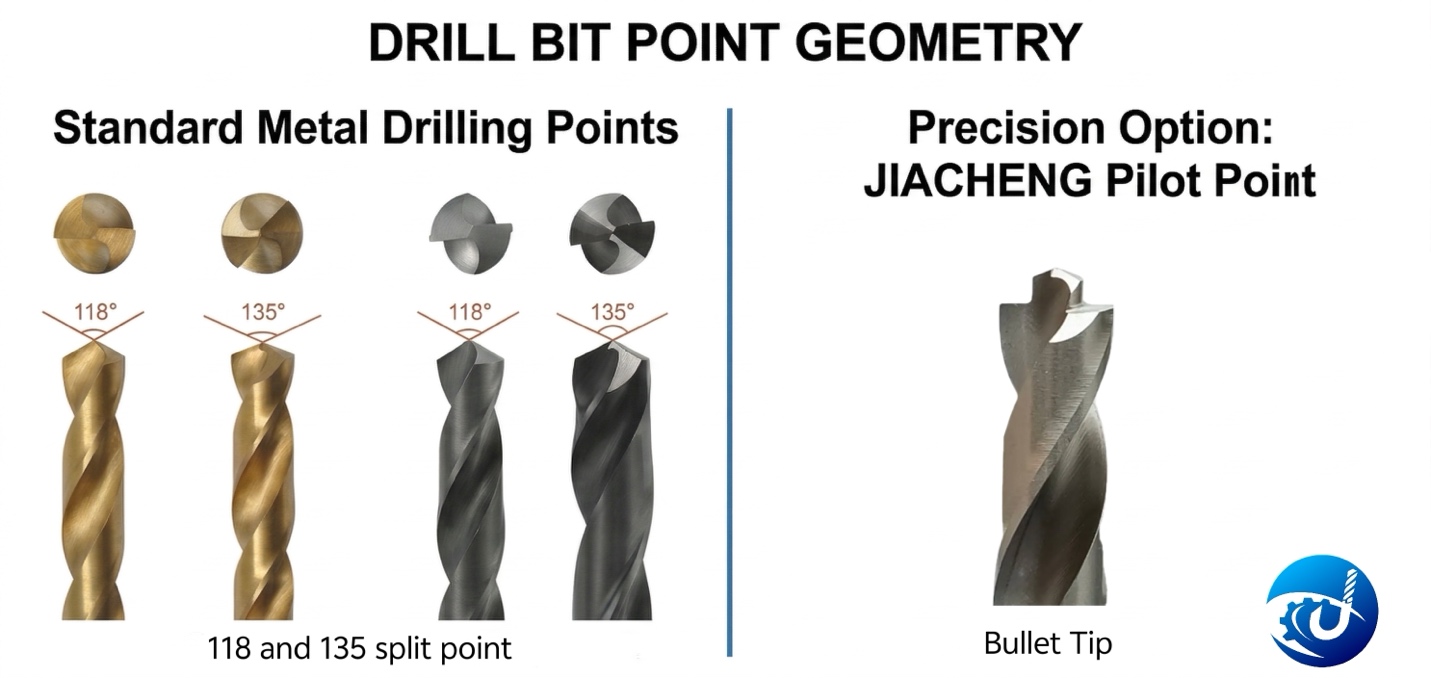

✅ Choose the Correct Point Angle: 135° vs. 118°
For industrial metal drilling, the 118° general-purpose point is often insufficient. Upgrading to a 135-degree point angle is highly recommended. The 135° angle is flatter, which shortens the chisel edge and provides better stability and improved self-centering performance.
✅ Demand Split Point Geometry
A split point (also known as a 135-degree split point or self-centering point) is a secondary grind on the drill tip. It eliminates the non-cutting chisel edge, allowing the very center of the drill bit to start cutting immediately upon contact.
• Benefit: Significantly reduces slipping, lowers thrust force, and ensures instant, precise positioning.
✅ Control Speed (RPM) and Feed (Pressure)
Best practice for starting a hole is:
1.Low RPM: Start slowly until the lips engage.
2.Light Pressure: Apply just enough force to prevent skating.
3.Increase: Gradually increase speed and feed once the hole is established.
✅ Secure the Workpiece (Clamping)
Especially critical for thin materials, small components, and high-precision jobs. A rock-solid clamp eliminates vibration, which is a primary cause of misalignment.
4. The Efficient Solution: Pilot Point Drill Bits (Stepped Tips)
While traditional methods work well, modern tool manufacturing offers a superior, high-efficiency solution that bypasses many manual steps: Drill bits with a Pilot Point geometry.
What Is a Pilot Point?
A pilot point (or stepped tip) is a specialized tip design where a smaller, protruding center point engages the material first, acting as its own integrated center punch and pilot hole.
Why It Eliminates Wandering:

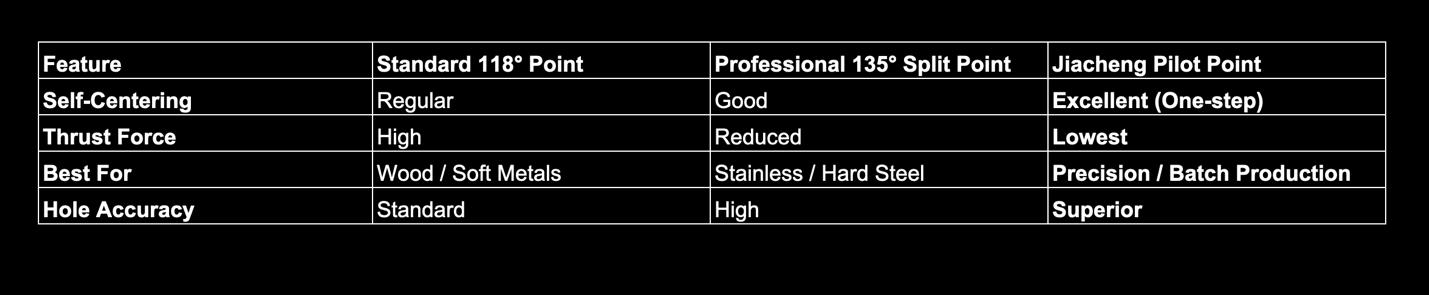

Compared to even high-quality 135° split point bits, Pilot Point geometry offers:
• Superior Self-Centering: It cannot walk once the center point is set.
• Drastically Reduced Slipping: Ideal for drilling curved surfaces like pipes or ultra-smooth stainless steel.
• One-Step Precision: eliminates the need for manual center punching in many production applications.
• Clean, Burr-Free Holes: The stepped design helps mill the circumference of the hole cleanly.

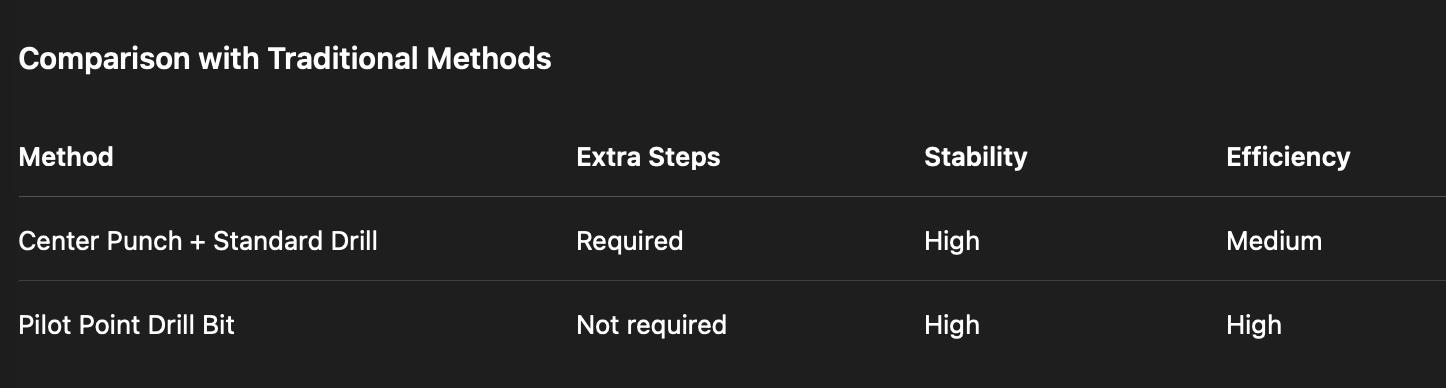

The Jiacheng Advantage: Simplified Production
• Traditional Method: Measure ➡️ Punch ➡️ Pilot Drill ➡️ Final Drill (Multiple steps).
• Jiacheng Pilot Point: Measure ➡️ Drill (Single step).
5. Summary and Professional Recommendation
To eliminate drill bit wandering, adopt these key principles:
1.Establish a physical guide (Center Punch).
2.Upgrade to 135° Split Point geometry for standard high-performance needs.
3.Implement Pilot Point Drill Bits for maximum efficiency and precision in production environments.
4.Secure the workpiece and control start-up speed.
Focus on Tool Quality
Achieving concentricity is not just about geometry; it is about manufacturing precision. Factors such as cutting-edge symmetry, split-point precision, heat treatment consistency (Red Hardness), and the quality of the HSS material (M35 Cobalt for stainless steel) are critical.
Conclusion
Drilling straight, accurate holes in metal is not just about manual technique—it is about understanding the drilling process and utilizing advanced tool geometries.
If your operation is facing wandering issues, scrapped parts, or slow production, the problem likely lies in your current drill bit selection. Jiacheng Tools specializes in high-quality HSS manufacturing, including M35 Cobalt 135° Split Point and Precision Pilot Point solutions.
For technical support or to request samples of our self-centering drill bits, please contact our engineering team.
