Series: Why Drill Bits Fail | Article 3
Keywords: HSS drill bit quality, drill bit weight, drill bit hardness, HSS density, drill bit quality inspection, how to evaluate drill bits

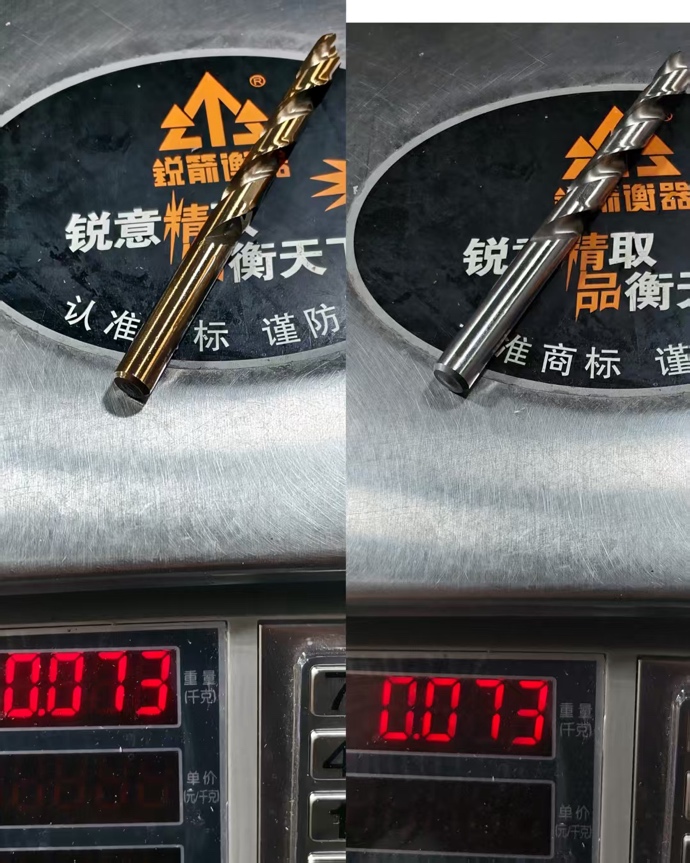

Some buyers weigh drill bits when evaluating a new supplier’s samples. The heavier the bit, the better the steel — or so the logic goes.
It is an understandable instinct. Weight feels like a proxy for substance. But when it comes to HSS drill bits, weight is one of the least reliable indicators of quality. In some cases, a heavier drill bit is actually a sign of a lower-grade product.
Here is why.
HSS Density Does Not Change Much Between Grades
High Speed Steel is a specific family of tool steels defined by its alloying elements — tungsten, molybdenum, chromium, vanadium, and in cobalt grades, cobalt. These elements are added in relatively small percentages to control hardness, wear resistance, and red hardness.
The density of HSS across common grades — M2, M35, M42 — falls within a narrow range, approximately 8.1 to 8.3 g/cm³. M2 and M35 differ in cobalt content (0% vs. approximately 5%), but cobalt’s density (roughly 8.9 g/cm³) is close enough to the base steel matrix that blending 5% of it into the alloy shifts the overall density by less than 0.1 g/cm³. That difference is undetectable by hand and negligible even on a precision scale.
In practical terms: you cannot use weight to distinguish M2 from M35, or standard HSS from cobalt-grade HSS.
Then Why Do Some Drill Bits Feel Heavier?
If two drill bits of the same size feel noticeably different in weight, the explanation is almost always geometry — not material.

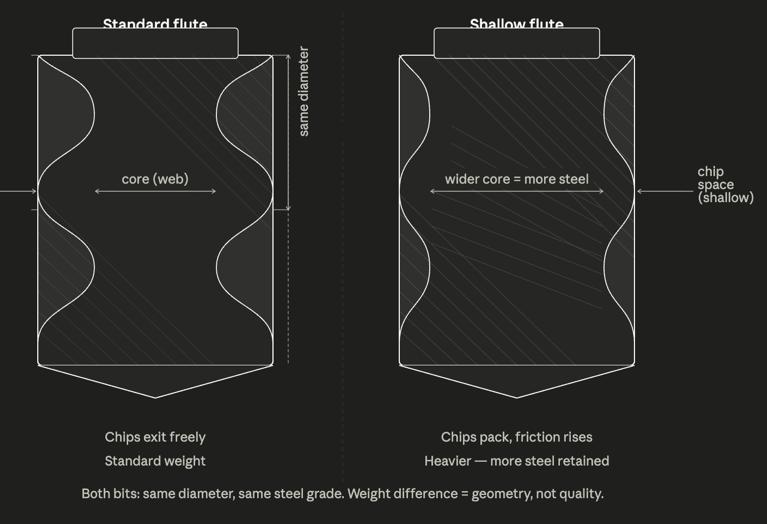

A drill bit’s weight is determined by how much material it contains. For a given length and diameter, the key variable is how much steel has been removed during grinding. The flute geometry — the depth and width of the helical channels cut into the body — directly controls this. Deeper, wider flutes remove more material. Shallow flutes leave more.
A manufacturer can produce a heavier drill bit by grinding shallower flutes. The bit retains more core material, so it weighs more. But shallower flutes have consequences: chip evacuation becomes less efficient, cutting friction increases, and heat builds up faster at the cutting zone. In difficult materials or at higher feeds, this leads to faster wear and a higher risk of premature failure.
This means a heavier drill bit is not a better drill bit. It may simply be one where a corner was cut in geometry — and the buyer is mistaking the symptom for a signal of quality.
What Weight Actually Reflects
Weight reflects volume of remaining steel. Volume is controlled by grinding. Grinding quality is a manufacturing decision.
An experienced manufacturer grinds flutes to the geometry specified by the application — DIN 338 or equivalent standards define helix angle, flute depth, and point geometry for a reason. These dimensions are optimized across decades of industrial use to balance chip evacuation, cutting edge strength, and drilling efficiency.
A drill bit that deviates from standard geometry to appear heavier has not improved on that balance. It has compromised it.
The Metrics That Actually Matter
If weight is not a reliable indicator, what should buyers look at when evaluating drill bit quality?
The meaningful variables are:
• Hardness. After heat treatment, the cutting edge of a properly manufactured M2 HSS drill bit should reach approximately HRC 63–65. M35 cobalt should reach HRC 64–66. Hardness values outside these ranges indicate problems with heat treatment — either underheating, insufficient quench rate, or poor tempering control. Hardness can be measured directly with a Rockwell hardness tester.
• Material composition. Spectrometer analysis (OES — Optical Emission Spectrometry) is the only reliable way to verify whether a drill bit actually contains the alloy elements claimed. Cobalt content, tungsten percentage, vanadium — none of these are visible or weighable. They require lab verification.
• Geometry accuracy. Point angle, helix angle, flute symmetry, and chisel edge condition all affect cutting performance. These are measurable with optical measuring instruments or profile projectors.
• Batch consistency. A single sample that passes is not enough. Industrial buyers need performance that holds across an entire production batch. Consistency in hardness, geometry, and surface finish across hundreds or thousands of pieces is a manufacturing process question, not a single-unit inspection question.
• Surface finish. Grinding quality is visible. Rough grinding marks, uneven flute surfaces, or visible chatter marks on the cutting edge are signs of process problems. A properly ground drill bit shows clean, smooth flute surfaces with consistent edge geometry.
What This Means for Sourcing Decisions
When a supplier sends samples, resist the instinct to evaluate them by weight. The meaningful check is to request material certification, inspect geometry under magnification if possible, and — for high-stakes orders — ask for hardness test data or independent material verification.
Weight is not a shortcut. It is noise.
The quality of an HSS drill bit lives in its steel composition, its heat treatment, and its ground geometry. None of these show up on a scale.
About This Series
Why Drill Bits Fail is a technical series from our manufacturing team. Each article focuses on one factor in drill bit performance — from raw material to packaging. The goal is simple: help buyers understand what they are actually purchasing, and what questions are worth asking.
