Series: Why Drill Bits Fail | Article 12
Keywords: roll forged drill bit, full ground drill bit, drill bit manufacturing process, hot rolled drill bit forming, drill bit precision comparison, HSS drill bit material grade, M35 drill bit, 4241 drill bit steel, drill bit for tapping, DIY drill bit vs industrial drill bit
The last article in this series looked at what happens after the cutting edge does its work — how flute geometry decides whether a chip clears the hole or packs inside it. This one goes back a step further, to a question that sits underneath flute geometry entirely: how the flute gets there in the first place. There are two ways to put a helical groove into a piece of steel. One removes material. The other never removes anything at all.
What Buyers Actually Care About
Most buyers don't ask whether a bit was ground or rolled. What they're really asking is whether the bit will hold the tolerance they need, whether it'll survive the application, and whether the next batch will perform the same way as this one. The manufacturing method is not the point — it's the reason those questions have different answers depending on which bit you're holding.

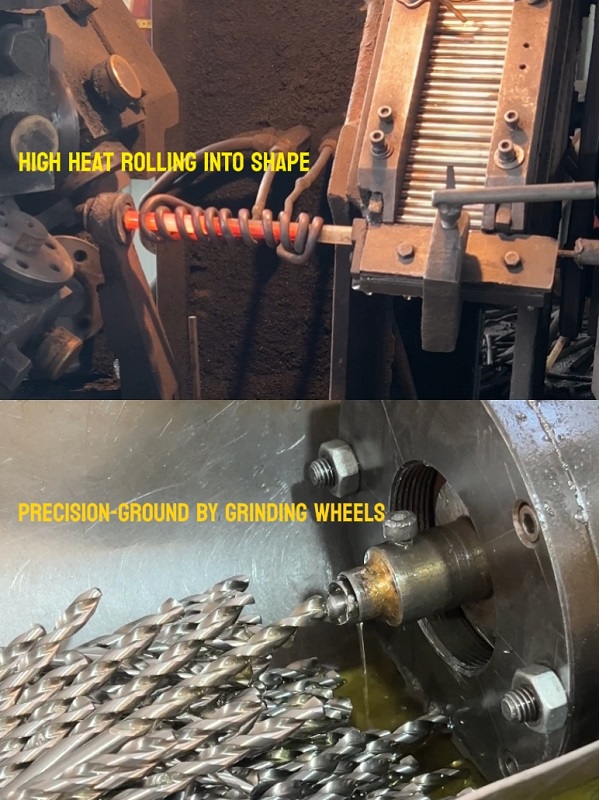

How a Roll Forged Bit Is Made
A roll forged bit starts as a straight steel blank. The blank is heated, then run between rollers cut with the flute profile. Under heat and pressure, the steel deforms into the helical shape — the flute is pushed into the material, not cut out of it. No material is removed at any point in the process. This is fast and inexpensive to run at volume, which is exactly why it exists.
How a Full Ground Bit Is Made
A full ground bit starts the same way — a cylindrical blank — but the flute is cut into it with a grinding wheel, removing material to form the helix, the point, and the margin. Because grinding is a subtractive, controlled process, geometry — helix angle, flute form, cutting edge — can be held to a tight tolerance on every single bit, not just on average across a batch.
The Precision Gap
This is where the two processes actually diverge for the buyer. A ground surface is smoother and more consistent in diameter and concentricity than a rolled one. A rolled bit's precision depends on the condition of the rolling dies and how evenly the steel flows during forming — both of which drift over a production run. This isn't a quality defect on either side. It's a ceiling built into the process itself: rolling will not hold the same tolerance as grinding, no matter how well it's run.
Why Material Grade Tracks the Process
The precision gap is also why the two processes end up paired with different steel grades. M35, M2 (6542), and 4341 carry higher alloy content and higher hardness — properties that make the steel resist the plastic deformation roll forging depends on, and raise the risk of uneven forming or cracking under that kind of pressure. Grinding, which removes material rather than deforming it, is the process that can actually work with steel in that hardness range without those risks. 4241, by contrast, is softer and more workable. It deforms cleanly under heat and pressure, which is exactly what makes it a practical match for roll forging — and why it's the grade you'll typically find in a rolled bit.
That pairing carries straight through to what each bit is good for. A ground bit in M35, M2, or 4341 can hold the tolerance industrial machining calls for, and hold up to a secondary operation like tapping, where the bit needs to run true. A rolled bit in 4241 is priced for volume and built for general-purpose drilling — it's not the bit to reach for when the next step is a precision-fit hole.
Matching the Bit to the Job
For home repair, general woodworking, or drilling into mild materials, a roll forged bit does the job and costs less doing it. For industrial work where hole tolerance matters, or where the hole feeds into a follow-up operation like tapping or assembly, a ground bit is the safer choice. Picking the wrong one isn't a quality failure on the bit's part — it's a mismatch between the process and the job.
What This Means When Comparing Suppliers
Price differences between drill bits often start right here — roll forging and full grinding carry different cost structures, so a lower price on one doesn't tell you anything about the other unless you know which process built it. Before comparing quotes, it's worth asking directly:
• Is this batch roll forged or full ground?
• What steel grade is it made from?
• Does the grade match the process — or does a "precision ground" claim come with a price that only makes sense for a rolled bit?
If a supplier can't answer the first question clearly, that's usually worth more than the price on the quote.
About this series
Why Drill Bits Fail is a technical series written by our production team. Each article focuses on one specific factor in drill bit performance — from raw material to packaging. The goal is simple: help buyers understand what they are actually buying, and which questions to ask.
