Series: Why Drill Bits Fail | Article 15
Keywords: drilling stainless steel, why stainless steel is hard to drill, stainless steel work hardening, drill bit for stainless steel 304 316, M35 cobalt HSS drill bit, stainless steel chip breaking, low thermal conductivity stainless steel, stainless steel built-up edge, 135 split point stainless steel, red hardness drill bit, work hardening drill failure, stainless steel drilling RPM feed
Ask anyone who has drilled 304 or 316 stainless on a shop floor what the problem is, and you'll get the same word before you get the science: sticky. The drill doesn't just resist — it seems to get harder to push the longer you're in the hole. That description is accurate. It's also incomplete.
Stainless steel isn't difficult to drill because it's hard. In its annealed state, common grades like 304 and 316 are often softer than hardened tool steel. What makes stainless different is that drilling it sets off four separate mechanical behaviors at the same time, and each one makes the other three worse. Understanding that loop — not just knowing "stainless is tough" — is what separates a drilling process that works from one that eats bits.
It's Not a Hardness Problem
If hardness alone explained the problem, a harder drill bit would fix it. In practice, plenty of shops upgrade to a harder bit and still burn through it in the same number of holes. That's because the four mechanisms below don't act one at a time — they feed each other in a loop, and the loop is what actually destroys the drill.
● Ductility and poor chip breaking — the material doesn't shear off cleanly
● Low thermal conductivity — the heat that's generated has nowhere to go
● Work hardening — the surface gets harder exactly where you're trying to cut it
● Heat concentration at the cutting edge — the drill takes the punishment the workpiece can't absorb
Each of these is a known property of austenitic stainless on its own. The failure mode buyers actually experience is what happens when all four are running at once.
Why Stainless Feels “Sticky” — Ductility and Poor Chip Breaking
304 and 316 are more ductile than carbon steel, which means the material deforms and stretches ahead of the cutting edge instead of shearing off into a short chip. The result is a long, continuous, spiral chip instead of the small broken fragments you'd get in mild steel.
Stainless steel fabrication references describe austenitic grades in exactly these terms — as having “high work hardening rates and poor chip breaking properties” during machining.
Source: general stainless steel machining reference literature (fabrication industry technical guidance).
Long spiral chips don't just look messy. They wrap around the drill body, pack into the flutes, and in bad cases jam the tool outright. A packed flute can't carry chips — or heat — out of the hole, which pushes the problem straight into the next section.
The Heat That Has Nowhere to Go
Stainless steel's thermal conductivity is roughly a third of carbon steel's — typically in the range of 15–30 W/m·K versus 30–60 W/m·K for ordinary carbon steel. In practice, that means the heat generated at the cutting edge doesn't dissipate into the surrounding workpiece the way it would in mild steel. It stays concentrated exactly where the drill is doing the most work.
Normally, a good share of cutting heat leaves with the chip. But the chip we just described — long, stringy, packed into the flutes — isn't clearing the hole efficiently either. Less heat exits with the chip, and what's left behind gets absorbed by the tool and the freshly cut surface. That's the direct link between poor chip evacuation and edge temperature: it's not two separate problems, it's one problem compounding itself.
Work Hardening — When the Hole Fights Back
This is usually the part that actually kills a drill bit, and it's a direct consequence of the heat described above. When the cutting edge is rubbing instead of cutting — too little feed, too much speed, or a moment of hesitation mid-hole — the friction and pressure cold-work a thin layer of the surface. That layer strengthens. In stainless, the affected zone can reach roughly 40–50 HRC, harder than the drill bit is often designed to cut.
The trap: once a ring of material work-hardens, the drill has an even harder time biting into it on the next revolution, which causes more rubbing, which hardens the surface further. It's self-reinforcing — and it starts the moment the drill stops cutting cleanly.
This is also why the standard shop-floor rule for stainless is absolute: never stop feeding while the spindle is turning. A pause of even a second or two, with the bit still spinning in contact with the material, is often enough to harden that spot beyond what the same drill can cut through afterward.

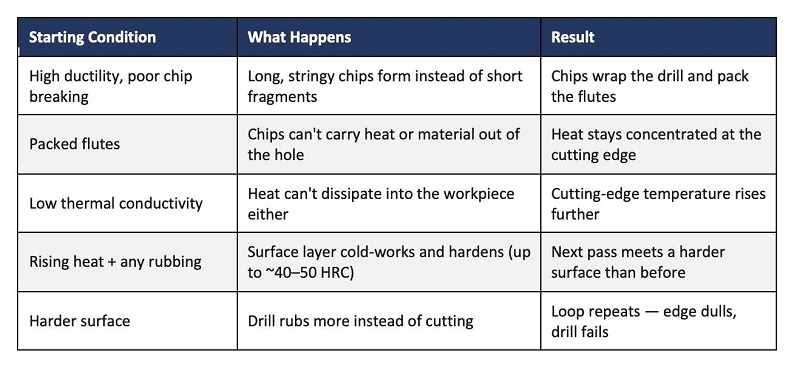

How the Four Factors Compound
Laid out as a chain, the failure sequence looks like this:
Where the Drill Bit Itself Comes In
Given all of the above, it's tempting to reach for a “harder” drill bit and assume the problem is solved. That's the wrong framing. The reason M35 cobalt HSS outperforms standard M2 HSS in stainless isn't that M35 is simply harder — it's that M35 retains its hardness and cutting ability at a higher temperature. M2 HSS starts losing its edge hardness at roughly 400°C; M35's cobalt content pushes that red-hardness threshold up to roughly 600°C.
Since the core problem in stainless drilling is heat that has nowhere to go, a drill grade that holds its cutting edge at higher temperature is addressing the actual mechanism — not just resisting wear in general. The sequence is worth stating plainly:
Stainless generates concentrated heat → cutting-edge temperature climbs → standard HSS loses hardness and dulls faster → a dull edge rubs instead of cutting → rubbing drives work hardening → more heat → failure. M35 cobalt interrupts this loop at the “edge loses hardness” step — not at the work-hardening step, and not at the RPM/feed step.
Point geometry matters for the same reason, from a different angle. A 135° split point (covered in this series' Geometry cluster) reduces skating and walking at the start of the hole, which shortens the window where the bit is rubbing rather than cutting cleanly. Less skating at entry means less opportunity to trigger work hardening before the hole even gets started.
None of this replaces correct process. A properly graded M35 cobalt bit run at the wrong RPM, with no feed pressure, or with a dwell mid-hole, will still work-harden the material and fail — just somewhat later than a standard HSS bit would. The drill grade raises the ceiling; it doesn't fix bad parameters underneath it.
What This Means When You're Sourcing Drill Bits for Stainless Work
If stainless steel drilling is a recurring part of your product line or your customers' applications, a few questions are worth asking before an order goes out:
● Is the grade actually M35 or M42 cobalt — confirmed by cobalt content, not just a “for stainless steel” label on the packaging?
● Does the point geometry include a 135° split point, or a standard 118° conical point meant for mild steel?
● Are recommended RPM/feed values for stainless actually communicated to the end user, or left for them to guess?
● Is coolant or cutting oil built into the recommended process, or silently assumed?
None of these questions have a universal right answer — they depend on the grade of stainless, hole depth, and equipment. But a supplier who can walk through them with you is generally further along in understanding the failure mode than one who only offers a harder-sounding product name.
About this series
Why Drill Bits Fail is a technical series written by our production team. Each article focuses on one specific factor in drill bit performance — from raw material to packaging. The goal is simple: help buyers understand what they are actually buying, and which questions to ask.
