Chips are the one part of the drilling process that most operators never look at twice. They sweep them off the table, clear the flutes, and move on.
That is a missed opportunity.
Chips are the health report of your drilling operation. They tell you whether your parameters are right, whether your drill is still sharp, whether the material is behaving as expected, and whether a problem is developing before it becomes a broken drill or a scrapped part.
The twist drill cannot speak. But the chips it leaves behind can.
Why Chip Shape Matters More Than You Think
In turning and milling, chip control is a standard part of process engineering. Machinists select chipbreaker geometries, adjust feed rates, and monitor chip formation as part of normal operations.
In drilling, the same logic applies — but it is less often applied. Part of the reason is visibility. When drilling metal on a drill press or CNC machine, the chips come out of the hole and fall away. They are easy to ignore.
Another reason is that many operators focus on the output — the hole — rather than the process. If the hole looks acceptable, the job is done.
The problem is that chips reveal problems before they show up in the hole. A drill bit that is generating the wrong chip shape is already under stress. The hole may still measure within tolerance — for now. But tool life is shortening, heat is building, and the failure is already in progress.
Reading chips gives you an early warning system that does not require any additional instruments. The chips are already there. You just need to know what to look for.
The Two Dimensions of Chip Diagnosis
Chip diagnosis works across two dimensions: shape and color.
Shape tells you about the mechanical conditions of cutting — how the material is shearing, how thick the chip is, whether it is breaking cleanly, and whether it is evacuating the hole. Color tells you about temperature — how much heat is being generated and whether that heat is being managed.
The two dimensions interact. A chip can have good shape but bad color, or good color but bad shape. You need to look at both.
Chip Shape: What You Are Looking For

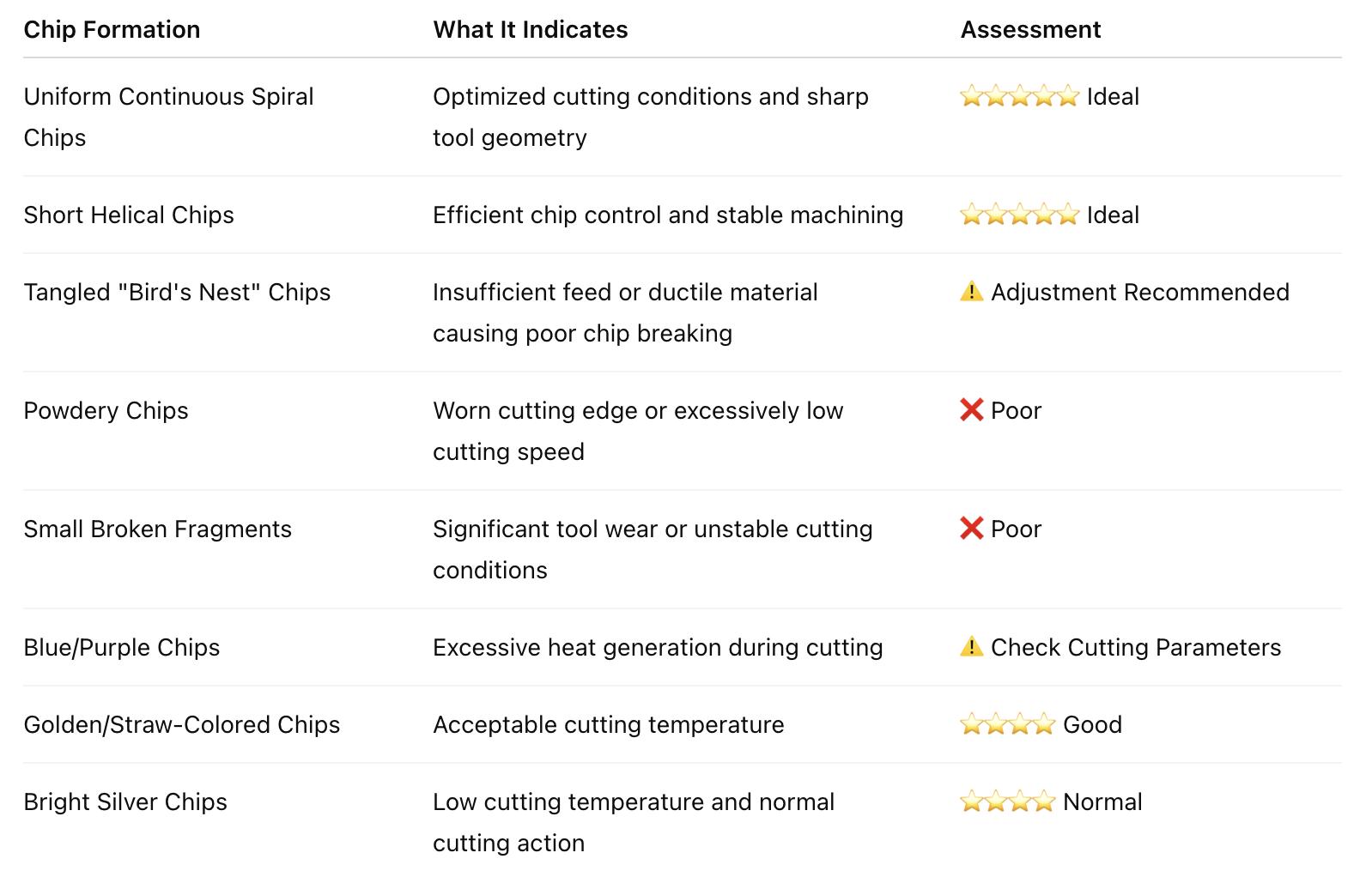

The reference above covers the main chip formations encountered in HSS metal drilling. Here is what each one means in practice.
Uniform Continuous Spiral Chips are the benchmark for most metal drilling. The chip is consistent in width, coils evenly, and flows out of the flute without tangling. This formation indicates that the cutting edge is sharp, the point angle is appropriate for the material, the feed rate is generating sufficient chip thickness, and the flute is able to transport chips without obstruction. If this is what you are seeing, your process is in good condition.
Short Helical Chips are equally desirable — in many cases, even better. Shorter chips are easier to evacuate, less likely to tangle around the spindle or workpiece, and indicate controlled chip breaking. A process that consistently produces short helical chips is well-controlled. Maintain it.
Tangled Bird's Nest Chips are a warning sign. The long, ribbon-like chips are wrapping around the drill body or piling up at the hole entrance instead of evacuating cleanly. Common causes include insufficient feed rate — chips that are too thin lack the stiffness to curl and break — ductile materials with high elongation, insufficient cutting speed for the material, or flutes that are becoming packed. The fix depends on the material: for mild steel, increasing speed and slightly reducing feed often helps. For stainless steel, increasing feed rate is usually the priority. For deep holes, adding a peck drilling cycle or switching to a parabolic flute geometry can resolve persistent tangling.
Powdery Chips indicate that the cutting edge is no longer cutting — it is scraping. The material is being abraded rather than sheared. This happens when the cutting edge has become dull past the point where it can form a proper shear zone, or when cutting speed is far too low for the material. In either case, the drill is generating heat through friction rather than controlled cutting. The surface finish inside the hole will already be compromised. The drill needs to be replaced or resharpened before continuing.
Small Broken Fragments — irregular pieces rather than spirals — suggest unstable cutting. Possible causes include a cutting edge that has begun to chip, excessive runout in the spindle, work hardening of the entry surface from a previous pass, or a mismatch between drill geometry and material hardness. Inspect the cutting edge closely. Even small edge chips will produce this pattern and shorten remaining tool life significantly.

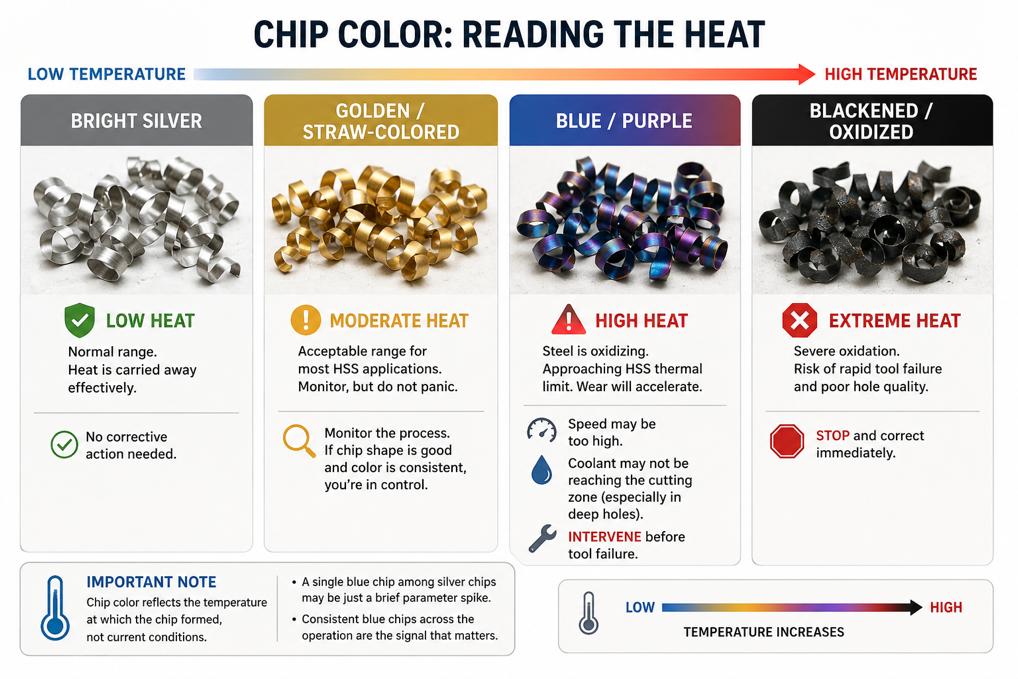

Chip Color: Reading the Heat
Color is a reliable indicator of chip temperature, which reflects the heat generated at the cutting zone. The sequence from low to high temperature runs: bright silver → golden or straw-colored → blue or purple. Beyond blue, chips may appear blackened or show partial oxidation.
Bright Silver Chips mean low cutting temperatures. In HSS drilling of common metals, this is the normal range. The cutting process is generating heat, but it is being carried away by the chip and the coolant effectively. No corrective action needed.
Golden or Straw-Colored Chips indicate moderate heat — still within the acceptable range for most HSS applications. This is common when drilling harder steels, carbon steel, or stainless steel without coolant. Monitor, but do not panic. If the color is consistent and the chip shape is good, the process is under control.
Blue or Purple Chips are a warning. Temperatures are elevated to the point where the steel surface is oxidizing. For HSS tools, sustained blue chips mean the cutting edge is approaching its thermal limit. Continued cutting at this heat level will accelerate wear rapidly. Check your speed — it is probably too high. Check your coolant — it may not be reaching the cutting zone, especially in deeper holes. Blue chips on HSS are a signal to intervene before tool failure.
One practical note: chip color reflects the temperature at which the chip formed, not current conditions. A single blue chip in a run of silver chips may just reflect a brief parameter spike. Consistent blue chips across the operation are the signal that matters.
Material-Specific Expectations

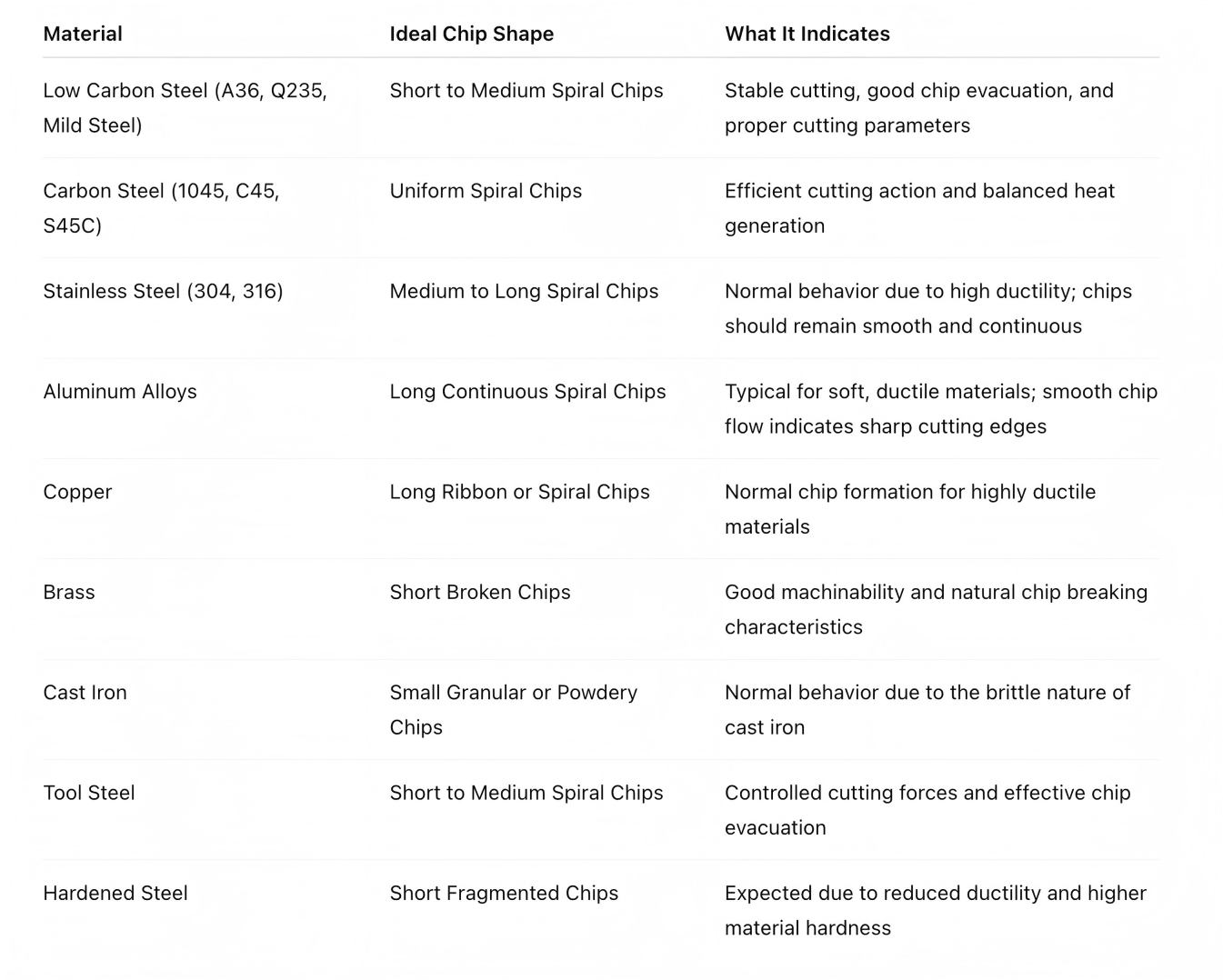

The reference above shows what ideal chips look like for the most common workpiece materials. This table is important because the same chip shape that indicates a problem in one material may be completely normal in another.
Mild steel and low carbon steel (A36, Q235) should produce short to medium spiral chips under normal conditions. Long, continuous spirals in mild steel typically mean feed rate is too low or the drill is beginning to dull. Increasing speed slightly while maintaining or reducing feed usually brings chips back into the target range.
Carbon steel (1045, C45, S45C) — uniform spiral chips indicate balanced cutting. Watch for built-up edge, which will show up as irregular chip geometry and a rough hole finish. Carbon steels respond well to proper lubrication at the cutting zone.
Stainless steel (304, 316) naturally produces medium to long spiral chips due to its high ductility. This is normal behavior for the material. The priority with stainless is not to shorten the chips — it is to keep them smooth and continuous, avoid work hardening the hole wall, and maintain sharp edges. Stainless punishes dull tools faster than almost any other common material. Blue chips on stainless are a serious warning, because the material's low thermal conductivity means heat concentrates at the cutting edge.
Aluminum alloys produce long, continuous spiral chips — sometimes very long. This is expected for soft, ductile material. The risk with aluminum is not chip length per se, but built-up edge: aluminum has a tendency to weld to the rake face of the drill, especially at lower cutting speeds. Built-up edge degrades hole finish and eventually causes oversized holes. If you see material adhering to the drill faces or chips with a rough, matt appearance, address the BUE before continuing.
Copper behaves similarly to aluminum — long ribbon or spiral chips are normal. Copper is highly ductile and has excellent thermal conductivity, which means heat management is usually less of a concern, but chip tangling is a real operational issue for deep holes.
Brass is one of the easiest metals to drill. Short, broken chips come naturally from the material's internal chip-breaking characteristics. If your brass drilling is producing long, continuous chips, your cutting speed is probably too low.
Cast iron will produce granular or powdery chips. This is normal — it is not a sign of tool wear or incorrect parameters. Cast iron is brittle and breaks rather than shears. The chips are abrasive, however, so protect your machine ways and clean thoroughly after each operation.
Tool steel and hardened steel require short chips. Long chips from hardened steel indicate the drill is struggling — either the grade is insufficient for the hardness level, the point angle is wrong, or the drill is already worn. Short fragmented chips in hardened steel are expected and acceptable; chip tangling in hardened steel is a sign of a process problem.

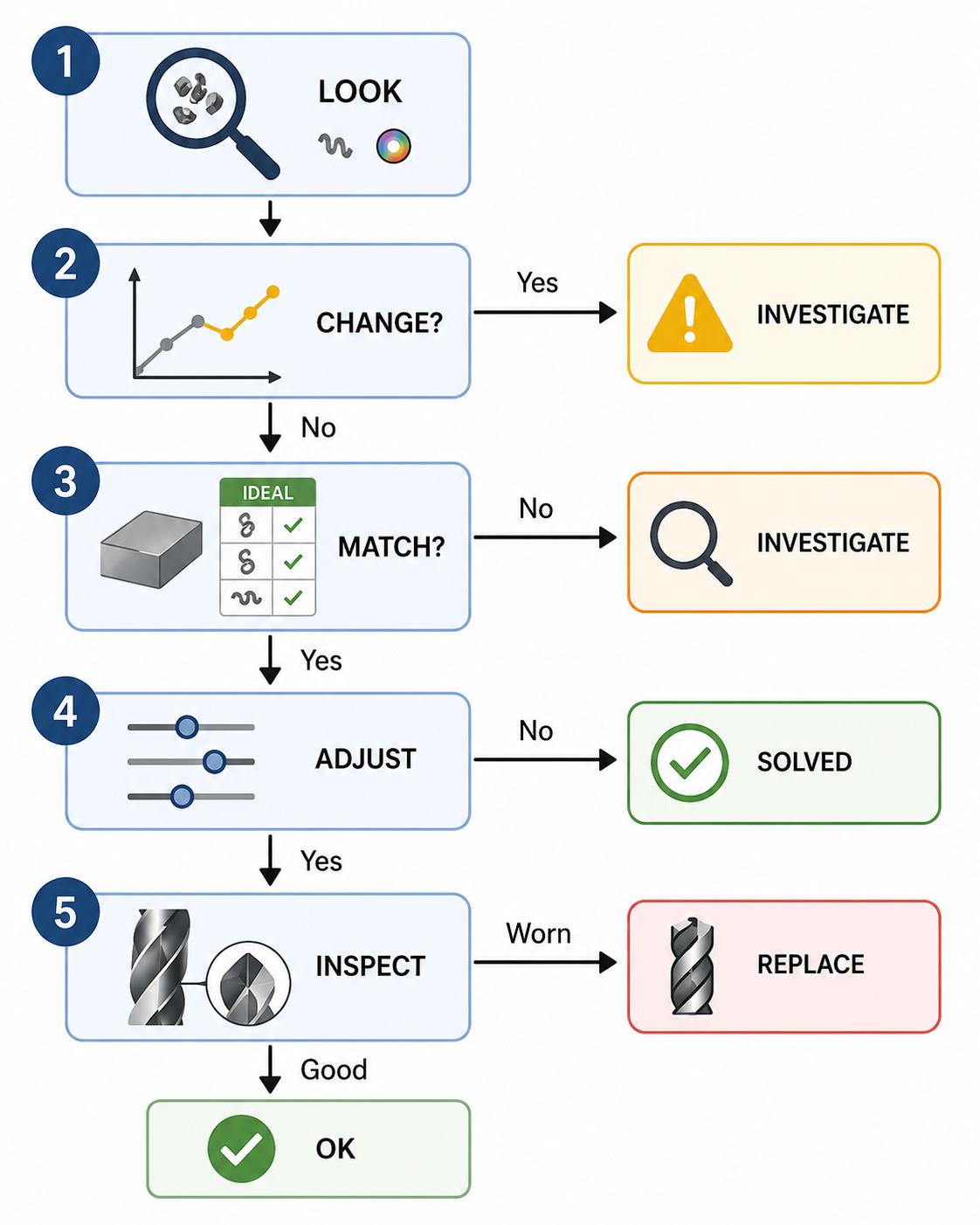

A Practical Diagnostic Workflow
In production, you do not need a laboratory to read chips. Here is a simple workflow that takes less than a minute and provides meaningful information about your process.
Step 1: Look at the chips after the first few holes. Before the process settles into routine, the first few chips are particularly informative. What shape are they? What color? This sets the baseline for the run.
Step 2: Note any change during the run. If chips that started silver are becoming golden, heat is building. If chips that started short are becoming longer, the drill may be dulling. If the shape changes suddenly, check for runout or a damaged cutting edge.
Step 3: Match what you see to the material. Refer to the ideal chip table for your workpiece material. Is the shape within the expected range, or is it departing from it? Departure from the expected range is always worth investigating — it means either parameters or tool condition has changed.
Step 4: Adjust parameters before adjusting tools. Many chip problems are parameter problems, not tool problems. Exhaust the speed and feed adjustment options first. A drill bit that is producing bad chips on incorrect parameters may perform perfectly when parameters are corrected.
Step 5: When in doubt, inspect the cutting edge. If chip behavior is degrading and parameter adjustments have not helped, the cutting edge is almost always the cause. In HSS drilling, dull edges produce characteristic patterns: powdery chips, increasing thrust force, and color shifting toward blue or gold even at moderate speeds.
What This Means for Drill Bit Quality
Understanding chip behavior is also useful when evaluating drill bit quality — including when you are comparing suppliers.
A well-manufactured HSS drill bit will produce consistent chips across a batch: consistent shape, consistent color, consistent chip size within normal variation for the material. A drill bit with poorly controlled heat treatment, asymmetric point grinding, or incorrect geometry will show its problems in the chips. Inconsistent chip formation, early color shift toward blue, or chip patterns that require constant parameter adjustment are all signs of manufacturing quality issues — not just operator error.
At Jiacheng Tools, our quality control process includes cutting tests that check exactly these characteristics. A drill that does not produce stable, predictable chip behavior under standard test conditions does not ship.
Summary
Chips carry more information than most operators realize. Shape tells you whether the mechanical conditions of cutting are correct. Color tells you whether heat is under control. Together, they give you a real-time picture of what is happening at the cutting edge — where no camera can reach.
The key takeaways from this article:
Uniform continuous spiral chips and short helical chips are the target in most metal drilling operations.
Tangled chips indicate a chip evacuation problem — address feed rate, depth strategy, or flute geometry.
Powdery chips mean the cutting edge is scraping, not cutting. Replace or resharpen.
Blue chips on HSS mean heat is out of control — reduce speed or improve coolant delivery.
Different materials have different normal chip shapes. Know your material before diagnosing your process.
The chips are already there. Reading them costs nothing. Ignoring them costs drills, holes, and time.
