Series: Why Drill Bits Fail | Article 5
Keywords: HSS drill bit quality, drill bit weight, drill bit hardness, HSS density, drill bit quality inspection, how to evaluate drill bits
Many buyers evaluating drill bit quality ask a seemingly simple question: “What’s the hardness?”
It’s not the wrong question. Hardness is one of the most important indicators of HSS drill bit quality. But “harder is always better” is a common misunderstanding — and it’s a misunderstanding that can lead buyers to choose the wrong product.
What Hardness Actually Tells You
Hardness, typically measured on the Rockwell C scale (HRC), reflects how well the cutting edge resists deformation after heat treatment. For HSS drill bits, this number is directly tied to whether the edge stays sharp and resists wear during cutting.
Heat treatment is what determines hardness. The same raw steel - M2 or M35, for example — can end up with noticeably different hardness depending on how it is heat treated. This is why steel grade alone can never tell you the real quality of a finished drill bit. Material is the starting point. Heat treatment is the step that turns that potential into actual performance.
Why Higher Hardness Is Not Always Better
Here is the counterintuitive part: pushing hardness too high can actually make a drill bit fail more easily.
A simple comparison helps explain why. A rubber eraser is soft — it deforms under pressure and cannot hold its shape. A ceramic plate is hard — but it has almost no toughness, so a single impact or bending force can shatter it instantly. An HSS drill bit needs to sit between these two extremes: hard enough to resist wear, but tough enough to absorb the shock and vibration of real cutting conditions without cracking the moment it meets a hard spot in the material.
This is why the goal of heat treatment is never “as hard as possible.” The real goal is finding the right balance of hardness and toughness for that specific steel and application. A drill bit with a high hardness number but insufficient toughness can actually fail faster in practice than one with slightly lower hardness and properly matched toughness — and it usually fails by chipping or cracking, not by gradual, normal wear.
Why Hardness Is a Range, Not a Single Number
Buyers often want a single precise hardness figure — “HRC 65,” for example. In reality, hardness is always a range, not one fixed value.
This is because heat treatment carries natural process variation. Even within the same furnace load and the same production batch, hardness will vary slightly from piece to piece. This is normal across the industry — it is not unique to any one factory. If a supplier quotes you one exact number and claims every single piece matches it precisely, that claim is itself worth questioning.
Honest, reliable hardness data should be presented as a range, backed by actual measurement — not a number recalled from memory. We recently upgraded our heat treatment process, and our current measured hardness ranges are approximately HRC 64–67 for M2 and HRC 65–69 for M35 cobalt. These are ranges that reflect normal batch-to-batch variation, not a promise that every single piece lands on one exact figure.
What Happens When Hardness Is Low or Uneven
When heat treatment is not well controlled, the typical consequences include:
• Insufficient hardness: the cutting edge softens prematurely during cutting, wear accelerates, and tool life shortens.
• Uneven hardness: some points on the same drill bit are softer or harder than others, causing uneven wear — or creating stress concentration points where the hardness shifts abruptly, which often become the starting point for chipping.
• Excessive batch-to-batch variation: even if the average hardness is acceptable, large variation within a batch means buyers experience “this batch worked well, the next one didn’t.” That kind of inconsistency is often harder to manage in production planning than a single batch simply falling short of spec.
None of this is visible from the outside. Color, surface finish, and feel tell you nothing reliable about actual hardness — the same principle we covered in our earlier article on why weight cannot identify HSS quality. Visual and tactile judgment is not a substitute for measurement.
How Buyers Can Verify Hardness
Hardness is one of the few quality indicators that can be directly measured rather than judged by experience alone. We recommend buyers:
• Ask the supplier about the hardness range of the steel grade used to manufacture the drill bits.

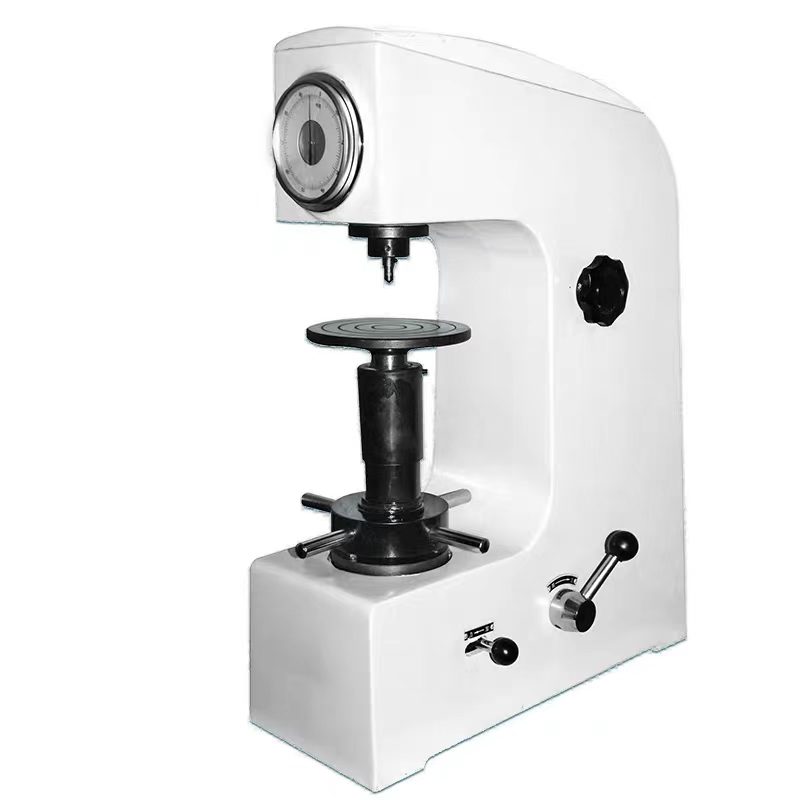

• For important orders, ask the supplier to test hardness on-site with a Rockwell hardness tester during production, or use your own Rockwell tester to spot-check incoming samples — this is an efficient verification method well within reach of most companies.
• Pay attention not just to the hardness number itself, but to whether that number is presented as a measured range with real data behind it, rather than a figure quoted from memory.
About this series
Why Drill Bits Fail is a technical series written by our production team. Each article focuses on one specific factor in drill bit performance — from raw material to packaging. The goal is simple: help buyers understand what they are actually buying, and which questions to ask.
Post time: Jun-23-2026
