Introduction
In metal fabrication and industrial drilling, tool life and procurement cost are two of the most critical factors for buyers. Double-ended drill bits — also known as reversible drill bits or twin-point drill bits — offer a straightforward structural advantage: two cutting points per bit. This "one bit, two lives" design is why more and more machine shops, hardware distributors, and industrial procurement managers are adding them to their standard consumables list.
This article breaks down the core value of double-ended HSS drill bits from three angles: structural design, material performance, and real-world application.

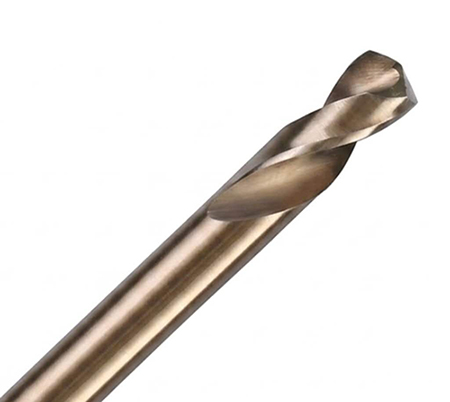

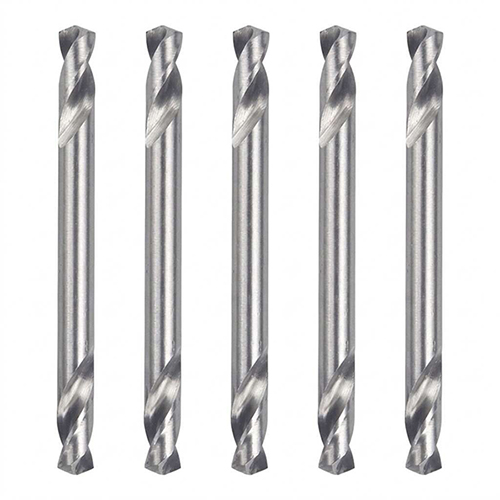

What Are Double-Ended Drill Bits?
A double-ended drill bit is a twist drill with a cutting point at both ends. Unlike a conventional single-end drill bit, when one end becomes dull or damaged, you don't discard the bit — you simply flip it and continue drilling with the other end. The result is up to twice the usable life per bit.
Jiacheng Tools' Versatile Double-Ended High-Speed Steel Drill Bits are manufactured from HSS M35/M2 high-speed steel, available in sizes from 1–8 mm, and designed for industrial bulk procurement where cost efficiency and reliability matter most.
Key Specifications and Technical Details

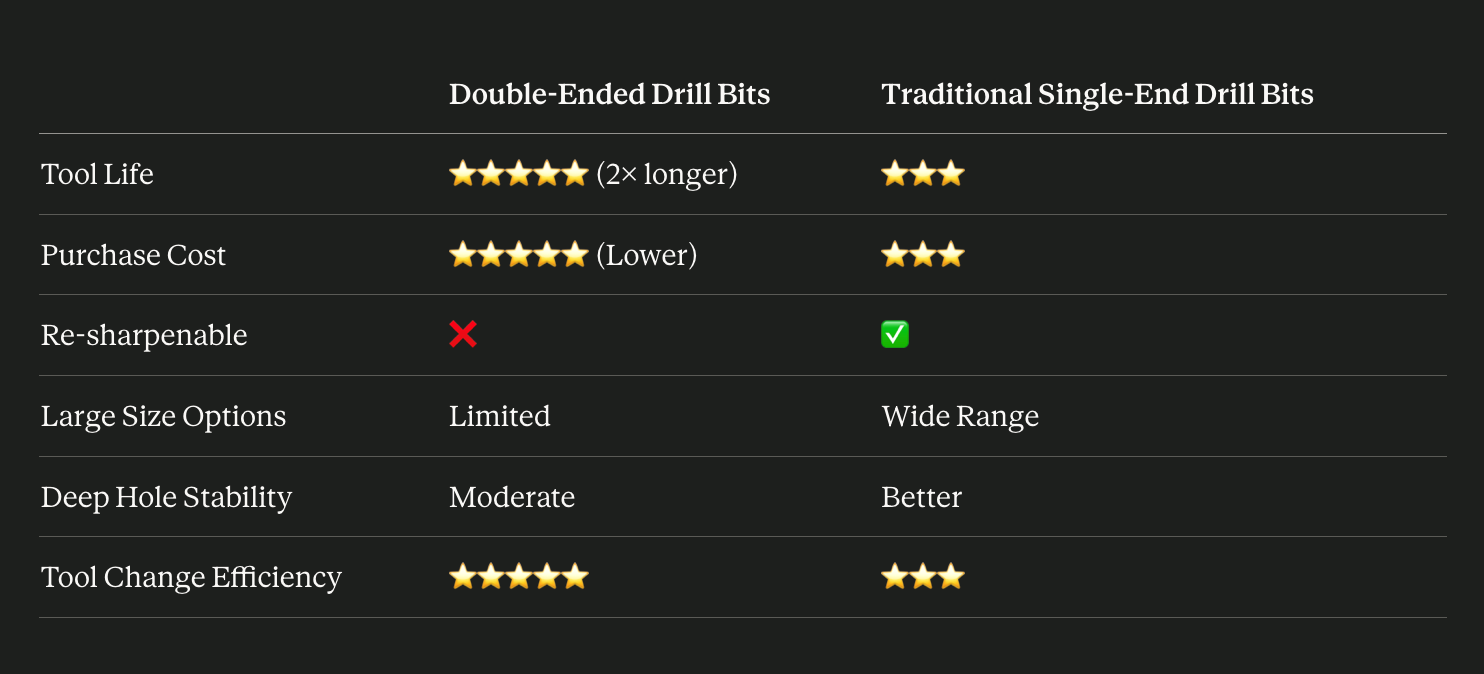

Double-Ended vs. Traditional Single-End Drill Bits
Longer Usable Life, Lower Unit Cost Each bit delivers the equivalent drilling capacity of two single-end bits. For distributors and machine shops buying in volume, this directly reduces per-hole tooling cost without changing the procurement budget.
Less Downtime for Tool Changes When one end wears out, flipping the bit takes seconds. There's no need to stop the line, locate a replacement, and re-chuck. In high-volume production environments, this adds up to meaningful gains in machine uptime.
Simpler Inventory Management The same number of bits in stock provides twice the actual cutting-point coverage compared to single-end bits, reducing the risk of line stoppages caused by running out of usable tooling.
Not Re-Sharpenable Single-end drill bits can be sent to a grinding service for resharpening, extending their life further. Double-ended bits are designed as a use-and-replace consumable — once both ends are worn, the bit is retired.
Limited Size Range Double-ended designs are most common in smaller diameters (typically 1–8 mm). For large-diameter drilling applications, traditional single-end bits remain the standard.
Shorter Shank, Lower Deep-Hole Stability The compact overall length of a double-ended bit can limit clamping depth, which may reduce rigidity in deep-hole drilling scenarios compared to a full-length single-end bit.
Minor Operator Adjustment Required Workers accustomed to single-end bits may need a short adaptation period to develop the habit of inspecting both ends before use and confirming which end is active after flipping.
Summary: Double-ended drill bits are the ideal choice for small-to-mid diameter, high-frequency, and high-volume industrial drilling. Traditional single-end drill bits remain the better option for large diameters, deep-hole applications, or operations that require re-sharpening.
Where Double-Ended Drill Bits Deliver the Most Value
Metal Fabrication Shops High-frequency drilling operations benefit directly from reduced tool change frequency and lower per-hole cost. Double-ended bits are a natural replacement for single-end consumables in these environments.
Hardware Distributors and Wholesalers A high cost-performance ratio makes double-ended drill bits an attractive addition to any standard product range, particularly for customers who prioritize value over premium tooling.
Industrial Maintenance, Repair & Operations (MRO) In field maintenance scenarios, having a backup cutting point on every bit reduces the need to carry large quantities of spare tooling. One box of double-ended bits covers what would otherwise require two.
DIY and Workshop Use The 1–8 mm size range covers the majority of everyday drilling tasks in home workshops and general repair work, where versatility and economy are equally valued.
Custom Orders and Bulk Supply
Jiacheng Tools supports full customization on double-ended drill bits — including diameter range, surface coating, and packaging format — all adjustable to match individual customer specifications. Our team works directly with each client to ensure product parameters align precisely with their production or distribution requirements.
For product details or bulk pricing inquiries, visit the product page:
