Series: Why Drill Bits Fail | Article 11
Keywords: drill bit flute design, chip evacuation, drill bit helix angle, parabolic flute drill bit, web thickness, chip packing, deep hole drilling HSS, standard flute vs parabolic flute
The last article in this series looked at how point angle is matched to different materials — the moment a cutting edge shears material off the workpiece. This one picks up right after that moment: once a chip is cut, it still has to leave the hole. If it doesn’t, everything upstream — material grade, heat treatment, point geometry — stops mattering. A bit can be forged from real M35 and ground to a textbook 135° split point and still fail, if the flute can’t carry the chip out fast enough.
Where the Chip Actually Goes
A twist drill removes material at the tip, but it clears that material along the flute — the helical channel that spirals from the cutting edge back to the shank. The chip doesn’t fall out of the hole on its own; it rides up that channel, pushed by the rotation of the bit and the shape of the flute wall. Three variables decide how well that ride goes: how steep the spiral is (helix angle), how much solid metal sits at the center of the bit (web thickness), and how much open space the flute channel actually offers (flute form). None of these can be optimized on its own — they trade against each other, and the right balance depends on the material and the hole depth, not on a single “better” number.
Helix Angle: Evacuation Speed Against Core Strength
Helix angle is the spiral angle of the flute measured against the drill’s axis. A steeper helix pushes chips out faster and shortens the length of cutting edge in contact with the material at any given moment — but it also increases axial thrust and removes more material from the drill body, which weakens the core. A shallower helix keeps more steel in the core and holds up better under torque, but chips move out more slowly, which becomes a real limitation once the hole gets deep.
This is why helix angle is matched to chip type rather than fixed at one number. Long, ductile chips — the kind produced by softer or more workable materials — need a steeper helix to keep them moving; short, brittle chips from harder materials don’t need the same push and benefit more from the added core strength of a shallower angle. There is no universal “best” helix angle. There is only the angle that matches how the chip forms.
Web Thickness: Rigidity Against Chip Room

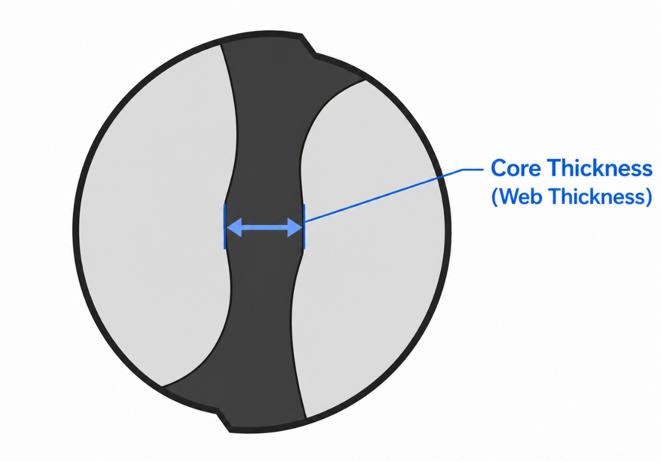

The web is the solid core running down the center of the bit, between the two flutes. It gives the drill its torsional strength — the ability to resist twisting or snapping under cutting torque. Web thickness isn’t constant along the bit; it’s deliberately tapered, thinner at the tip and thicker toward the shank, so the bit gains rigidity exactly where accumulated torque is highest.
The trade-off is direct: more web means more strength, but less room in the flute for chips to sit as they travel out. Push web thickness too far and the relationship breaks down — once the web crosses roughly 40% of the drill diameter, the remaining flute channel becomes too narrow to clear chips reliably, and the risk shifts from “the bit wears out” to “the bit jams and snaps.” This detail rarely shows up on a spec sheet, but it’s one of the more common reasons a drill breaks inside the hole rather than dulling at the tip.

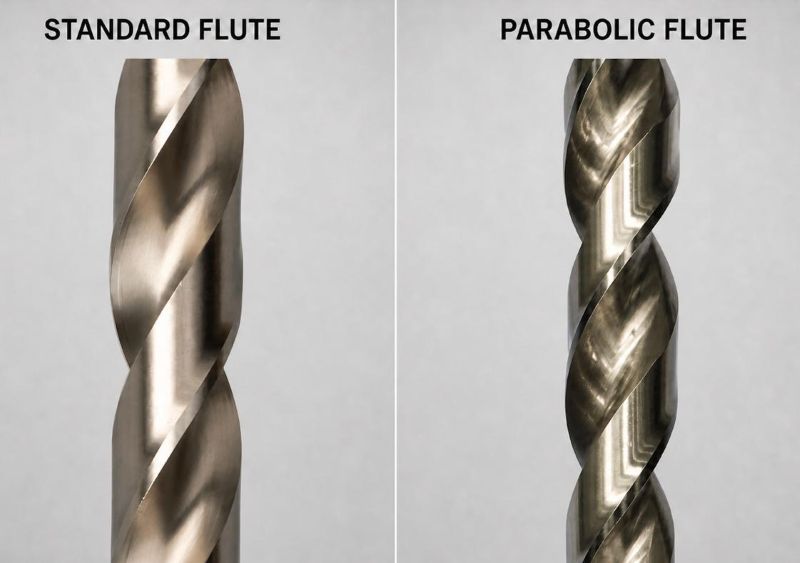

Standard Flute vs. Parabolic Flute: Two Answers to the Same Problem
We produce both flute types, and they aren’t a “basic” and “upgraded” version of the same drill — they’re built for different jobs.
A standard flute keeps a narrower channel and a lighter web, which is enough for most general-purpose drilling: shallow-to-moderate hole depths, standard jobber-length work, and materials that don’t produce long, unmanageable chips. Most everyday drilling falls into this category, and there’s no benefit to over-specifying beyond it.
A parabolic flute opens that channel up. The flute wall is ground into a wider, curved profile that gives chips more room and a smoother path out, paired with a faster spiral that moves them along more aggressively. The wider channel means the web underneath can also be made thicker — roughly 25–50% of the drill diameter, compared to about 12–25% on a standard flute — so the bit gains chip capacity and core strength at the same time, instead of trading one for the other. That combination is what lets a parabolic flute hold up in deeper holes and in materials that produce longer, more continuous chips, including stainless steel, copper, and aluminum, without needing to peck the hole as often.
That thicker web does raise axial thrust, which is why parabolic flute drills are commonly paired with a split point — the same 135° geometry covered in Article 9 — to bring that thrust back down to a manageable level.
Within our parabolic line, we also offer two groove widths. A larger V-groove maximizes chip room and evacuation speed, which suits harder-to-machine materials but comes with less core steel behind it. A smaller V-groove keeps more steel in the body for jobs where rigidity matters more than maximum flute volume. Which one to use depends on whether the material or the workpiece rigidity is the limiting factor — not on which one sounds more advanced.
What Happens When the Flute Loses the Argument
When flute geometry doesn’t match the material or the hole depth, the chip stops moving before it reaches the top of the flute. It packs into the channel instead of exiting it. From there, the failure sequence is consistent: packed chips increase friction against the flute wall and the hole wall, friction generates heat faster than it can dissipate, and the cutting edge starts re-cutting material that’s already been removed instead of fresh stock. The visible results are a rough or oversized bore, a sudden spike in torque, and — if the packing is severe enough — a bit that stalls and snaps off inside the hole.
This is the same pattern this series keeps coming back to: a buyer isn’t really purchasing a drill bit, they’re purchasing consistent hole-making capability. Flute design is a failure point that’s easy to overlook because a standard flute and a parabolic flute look similar in a photo. The difference only shows up once the hole gets deep enough, or the material generates chips too long for a narrow channel to handle.
What This Means When Comparing Suppliers
None of this is really about which flute is “better.” It’s about which flute is built for the job in front of you. When evaluating a drill bit against your actual application, it’s worth asking:
• What’s the intended hole depth, and does the flute have enough open channel to clear chips at that depth without frequent pecking?
• Is the web thickness proportioned for the material — enough core strength without crowding out the chip channel?
• If the supplier offers a parabolic flute, is it paired with a split point to manage the added thrust, or was that detail left out?
These are the questions that tell you whether a flute was designed for your material and hole depth, or just labeled for it.
About this series
Why Drill Bits Fail is a technical series written by our production team. Each article focuses on one specific factor in drill bit performance — from raw material to packaging. The goal is simple: help buyers understand what they are actually buying, and which questions to ask.
