The last article in this series looked at two different ways to put a flute into a piece of steel — one that removes material, one that never does. This one goes a step further. Full ground bits are shaped by grinding, but "ground" isn't one operation. It's several, each controlling a different dimension. This article looks at what those dimensions are, and how they carry through to the hole the buyer actually ends up with.
What Buyers Actually Care About
Buyers rarely ask how many grinding passes a bit went through. What they're really asking is whether the holes it drills will hold a consistent size, whether the next batch will perform the same way as this one, and whether the bit can support a downstream operation like tapping, reaming, or a press fit. "Full ground" doesn't answer any of those questions by itself — it only names the process. What actually determines the outcome is which dimensions that process holds, and how tightly.

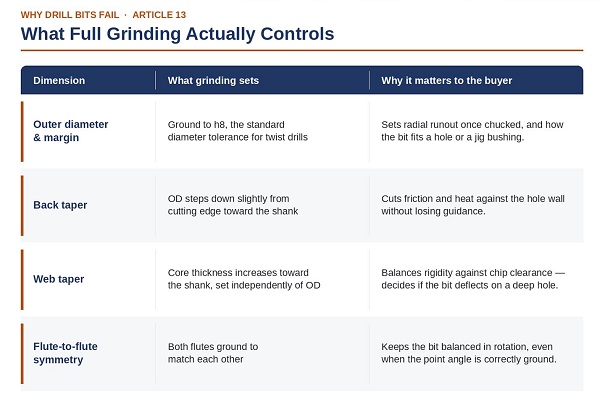

Grinding Doesn't Control One Dimension — It Controls a Chain of Them
A full ground bit isn't shaped in a single pass. It goes through several separate grinding operations, each holding a different dimension:
Outer diameter and margin grinding determines whether the bit lands consistently inside the standard tolerance band — the industry-standard diameter tolerance for twist drills is h8, an international specification, not something any one factory sets on its own. How well this operation is held shows up directly in the bit's radial runout once it's chucked.
Back taper: the outer diameter tapers down slightly from the cutting edge toward the shank. This taper is deliberately ground in to reduce friction and heat between the margin and the hole wall. Too little back taper and the bit can bind in the hole; too much and it loses guidance, which lets the hole drift off-center. Grinding can hold this dimension precisely — a roll forged bit generally can't, because it depends on the condition of the rolling dies, which wears and drifts within a single production run.
Web taper: the core thickness increases from the tip toward the shank to add rigidity to the bit body, without taking up so much room that chip evacuation suffers. This is another dimension set independently in grinding, and it's what decides whether the bit deflects — or snaps — partway through a deep hole.
Flute-to-flute symmetry: on a full ground bit, the two flutes are ground separately. If wheel dressing or feed parameters drift between the two, the flutes come out slightly unequal. This is related to — but distinct from — point centering, which we covered in Article 9 on the 135° split point. Even a correctly ground point angle won't fully compensate for flutes that aren't symmetrical; the bit will still run with a slight imbalance.
Surface Finish Is Also a Controlled Variable
A ground surface is smoother than a rolled or forged one. That's not just a cosmetic difference — a smoother flute surface reduces resistance to chip flow and lowers the tendency for chips to weld or pack inside the flute. The effect is most visible in materials prone to built-up edge, such as stainless steel and titanium, where it shows up directly in tool life.
Full Ground Raises the Ceiling — It Doesn't Guarantee the Result
This point matters: the full ground process sets the upper limit on what precision is achievable. It doesn't guarantee that every batch reaches it. Two bits can both be full ground and still perform differently, because:
• A grinding wheel that isn't dressed on schedule will gradually drift out of its intended profile.
• Without in-process inspection, batch-to-batch consistency isn't actually being checked. On our own line, operators run a first-piece check at the start of each batch — confirming outer diameter and runout on the first bit ground — followed by ongoing spot checks through the run, rather than finding a dimensional drift only after the whole batch is finished.
• The condition and maintenance of the grinding equipment itself determines whether a well-set grinding parameter actually lands inside tolerance in practice.
In other words, "we're full ground, so we're precise" answers the process question, not the consistency question. That's why two suppliers can both label a bit "full ground" and still deliver noticeably different results.
What These Dimensions Mean for a Buyer's Downstream Operations
• Pre-tap holes: hole diameter tolerance determines thread engagement percentage. Too large and engagement is insufficient; too small and tap breakage becomes a risk.
• Reaming: reamer stock allowance is calculated against the pre-hole tolerance. If the drilled hole itself varies from piece to piece, both reamer life and reamed accuracy suffer.
• Dowel pin holes and interference fits: an interference fit holds two parts together by making the shaft slightly larger than the hole, so the press-fit produces elastic deformation and friction that lock the parts in place without additional fasteners. The interference is typically only a few to a few dozen microns, so if the hole comes out oversized the fit won't hold; undersized, and the press-fit can crack the part. This is one of the tightest consistency requirements a drilled hole can be asked to meet.
• Jig bushing-guided drilling: the fit between the bit's margin diameter and the bushing bore determines how fast the bushing wears, and whether hole position stays consistent across a multi-hole fixture.
What This Means When Comparing Suppliers
"Full ground" answers how the bit was shaped — not whether that precision reliably repeats. Before comparing quotes, it's worth asking directly:
• Can the drill be ground to h8 tolerance?
• Are back taper and web taper set to a fixed standard?
Grinding quality doesn't have to be taken on a supplier's word alone. A buyer can check part of it directly: hold the bit up to the light and look at the flute and margin surfaces. An even, consistent finish points to stable grinding; visible chatter marks or patchy, inconsistent roughness are worth asking about.
About this series
Why Drill Bits Fail is a technical series written by our production team. Each article focuses on one specific factor in drill bit performance — from raw material to packaging. The goal is simple: help buyers understand what they are actually buying, and which questions to ask.
