The assumption buyers make
A gold-colored drill bit gets read as “the upgraded one.” That's not an unreasonable guess — gold-finish TiN coating does show up more often on higher-spec lines. But color only tells you one thing: whether the bit has been coated. It tells you nothing about the flute.
Flute geometry and surface coating are two separate specifications. A manufacturer can apply one without the other. A bit can carry a gold TiN coating over a standard flute, or a parabolic flute with no coating at all. Buyers who read “gold” as “deep-hole capable” run into one of two problems: they order a coated standard-flute bit expecting it to clear chips in a deep, continuous hole and it packs anyway — or they pay for a coating they didn't need for a job that never stressed the edge to begin with.
What the parabolic flute actually does
A standard twist drill flute is sized for moderate-depth, interrupted drilling. Once a hole gets deep, or drilling runs continuous rather than stop-start, chips don't have enough clearance to exit before the next pass generates more. They pack in the flute, get re-cut, and that re-cutting is what roughens the hole wall — or, at the far end, snaps the bit off inside the workpiece.
A parabolic flute is cut wider and deeper along the body, giving chips a bigger channel to travel out through. At the same drilling depth, chips clear faster and have less opportunity to build up. Cutting resistance also drops with the wider channel, which means less heat generated at the edge — a direct benefit to tool life on longer production runs.
The parabolic flute is solving one problem: chips not getting out of a hole that's deep or continuous. It has no bearing on how long the edge itself holds up. That's a separate question, handled by the coating.

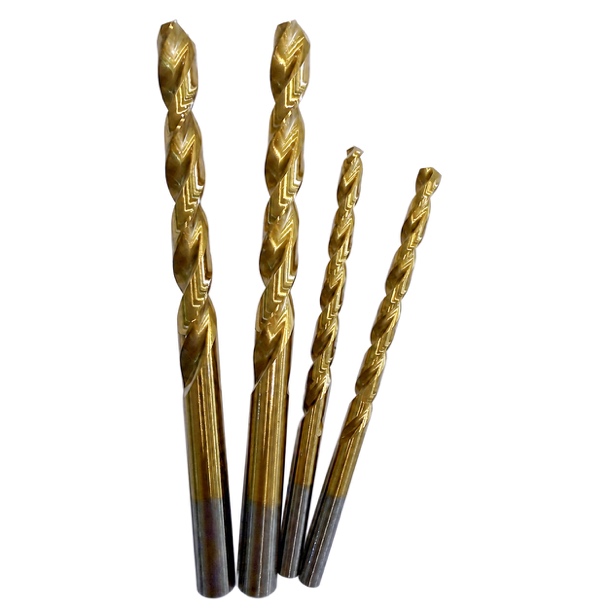

What the TiN coating actually does
Titanium nitride (TiN) coating reduces friction between the bit and the workpiece. Lower friction means lower cutting temperature and less built-up edge — the material welding itself onto the flutes that eventually degrades the cut. The coating surface is also harder than uncoated HSS, which slows edge wear specifically on abrasive or work-hardening materials.
The gold color is simply what TiN looks like. It's a useful shelf marker — a fast visual way to separate coated stock from bright or black-oxide finish in mixed inventory — but that's the extent of what the color communicates. The coating is answering “how long does the edge last,” not “how well does this hole clear chips.”
When you need one, the other, or both
• Shallow or interrupted drilling, non-abrasive material: a standard flute with no coating is usually enough. Paying for capability the job doesn't use is the more common mistake here, not the reverse.
• Deep or continuous drilling is the bottleneck, but the material isn't hard on the edge: the parabolic flute solves it. Coating is optional.
• Edge wear and tool life are the bottleneck, but holes aren't especially deep: a coated bit with a standard flute is the fit. No need to pay for the wider flute channel.
• Both problems show up together — deep or continuous holes and an abrasive or work-hardening material wearing down the edge — that's the case for a parabolic flute with TiN coating. It's a combination spec for a combination problem, not an upgrade tier.
What This Means When Comparing Suppliers
A gold finish in a product photo doesn't confirm flute geometry, and flute width often isn't visible in standard product images either. The reliable way to source this is to ask two separate questions: Is this a parabolic flute, and what is the coating? Confirm both specs independently, then match them against the actual job — hole depth and continuity on one side, material abrasiveness on the other — rather than inferring capability from what the bit looks like in a photo.
