The last article in this series looked at what grinding actually controls on a full ground bit — outer diameter, back taper, web taper, and flute-to-flute symmetry. One line in that article pointed ahead to this one: how well the outer diameter and margin are ground shows up directly in the bit’s radial runout once it’s chucked. This article picks that up. Runout is where grinding precision either holds through the cut or doesn’t — and it’s the single biggest factor separating a round hole from an oversized, out-of-round one.
Runout, in Plain Terms
Strip away the terminology and runout comes down to one question: is the drill straight? A drill bit whose geometric centerline runs true to its axis of rotation will sweep the same radius at every point as it spins. A bit that’s slightly bent, or ground off its own center, doesn’t — it wobbles, the way an unbalanced wheel does. That wobble, measured with a dial indicator, is what the industry calls TIR: total indicated runout.
It’s worth separating this clearly from walking, which we covered in Article 8. Walking happens in the instant the drill first touches the surface — it’s a chisel-edge and lip-symmetry issue, and it stops the moment the margins engage the hole wall. Runout is different: once the bit is chucked and spinning, it’s present for the entire cut, from first contact to final depth. Walking is a starting-point problem. Runout is a whole-cut problem, and that’s why its effects show up differently — not in hole position, but in hole size, roundness, and wall condition.
Two Places Runout Comes From

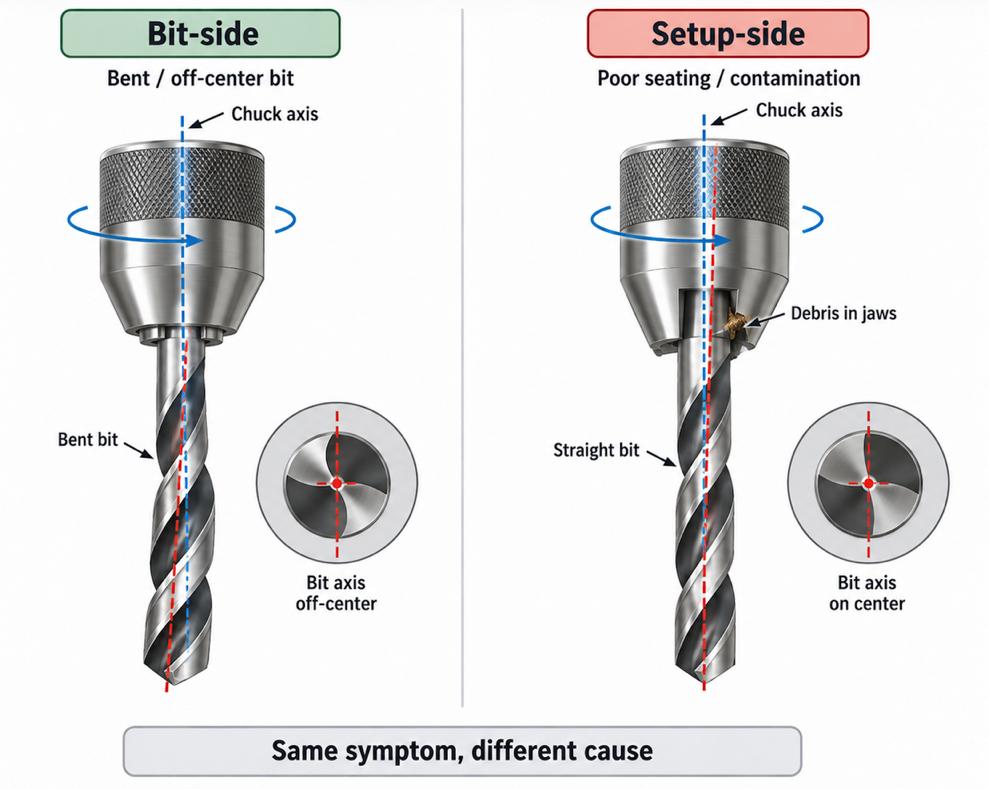

When a buyer sees a runout problem, the cause is almost always one of two things, and telling them apart matters because the fix is completely different.
• Bit-side (manufacturing): If the bit itself isn’t straight — from residual stress released after heat treatment, or from being ground without being held on its true center — the outer diameter is eccentric to begin with. No amount of careful chucking corrects for a bit that was already off-center when it left the grinding wheel. This is a manufacturing issue, and it’s controlled at the grinding and inspection stage.
• Setup-side (application): A worn chuck or collet, chips or oil trapped in the jaws, excessive stickout, or runout in the spindle itself will all introduce wobble even on a perfectly straight bit. This is an application condition, not a defect in the drill.
Why Long Drill Bits Need Closer Attention
Length amplifies whatever straightness error already exists. The same small angular deviation that’s barely measurable on a short bit produces a much larger swing at the tip of a long one — the same reason a long rod wobbles more at its end than a short one for the same amount of bend. This is also why long drills are harder to hold straight through grinding in the first place: without adequate support during the process, they’re more prone to picking up a slight bow that a standard-length bit would never show. Buyers working with extra-long or aircraft-length drills are right to ask a supplier directly what runout control looks like for that length range, rather than assuming it matches the standard-length spec.
What Runout Costs the Buyer
Because runout is present through the entire cut, its effects are systemic rather than isolated to one dimension:

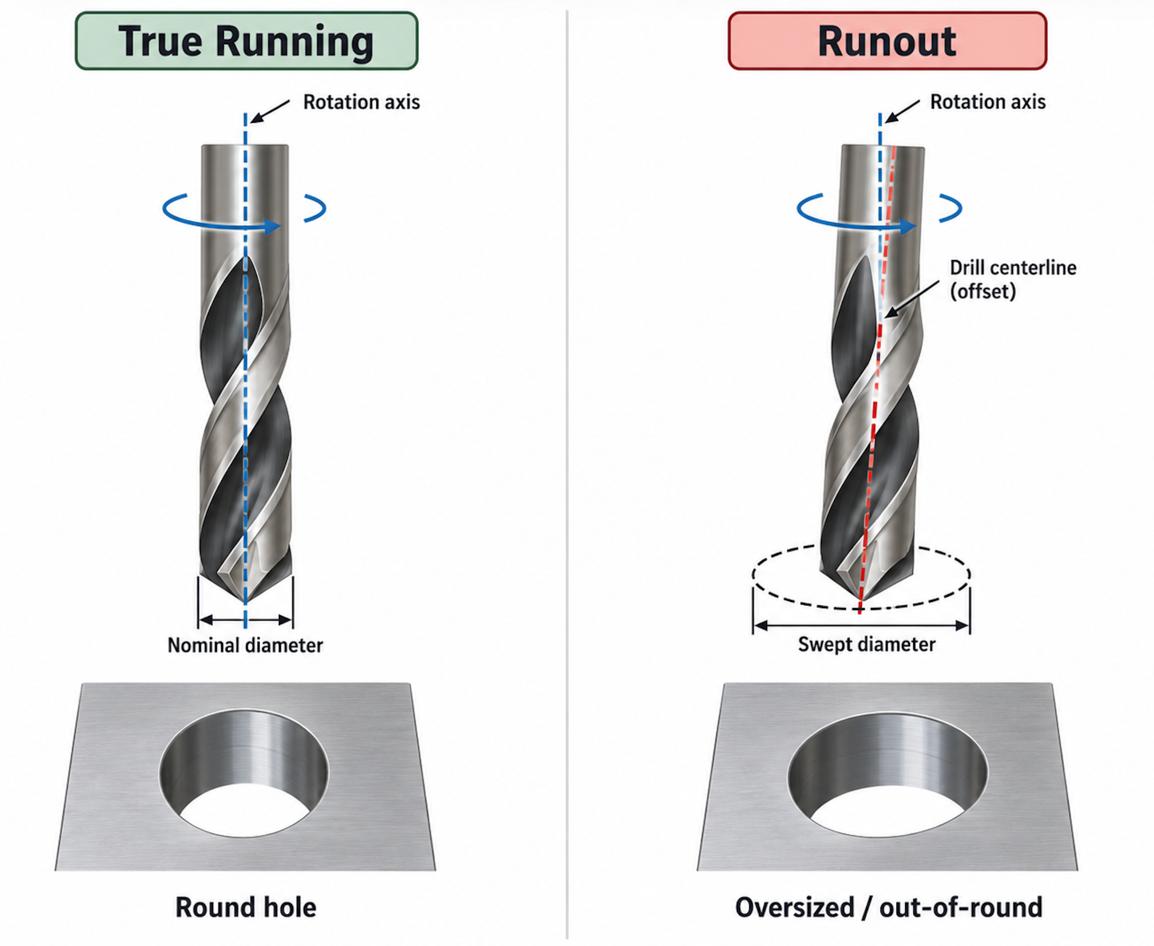

• Oversized holes. The drill’s effective swept diameter is larger than its nominal size, and the gap widens as runout increases.
• Out-of-round holes. A drill that isn’t running true cannot cut a round hole — this isn’t a probability, it’s a direct mechanical consequence of an off-center tool. Roundness error tracks runout almost one for one.
• Uneven margin wear. The side of the margin carrying more of the load wears faster than the other, and because the wear is asymmetric, it’s easy to miss on a quick visual check.
• Rougher hole walls. Retraction swirl marks and a coarser finish are common symptoms, particularly as runout climbs.
• Shorter tool life. Tool life drops disproportionately as runout increases — small reductions in runout produce outsized gains in the number of holes a drill can cut before it needs regrinding or replacement.
These consequences connect directly back to the last article. A bit ground to h8 tolerance on paper can still miss that tolerance band in the finished hole if runout isn’t controlled — which matters directly for reaming allowances, interference fits, and any downstream operation built around a consistent pre-hole size.
How Buyers Can Tell Where the Problem Sits
A dial indicator against the chucked bit gives the TIR directly — smaller-diameter drills are more sensitive to a given amount of runout than larger ones, so the acceptable range tightens as diameter drops.
Beyond measurement, a simple substitution test usually isolates the cause:
• Swap in a different drill and the problem disappears: The problem sits with that bit — either its straightness or how it was ground.
• Swap machines or re-chuck and the problem disappears: The problem sits with the setup — chuck condition, spindle runout, or stickout — not the drill.
• Neither swap resolves it: Worth checking stickout length, feed parameters, and workholding rigidity before assuming either the bit or the machine is at fault.
This mirrors the diagnostic approach from Article 8: knowing where the cause sits determines whether the right next step is a conversation with the supplier or an adjustment on the shop floor.
What This Means When Comparing Suppliers
Grinding tolerance and runout control are two different claims, and it’s worth asking about both separately. Before comparing quotes:
• Is runout checked after grinding, and on what basis — first-piece only, or ongoing sampling through the batch?
• Is there a separate runout standard for long or extra-long drills, given how much length amplifies a straightness error?
• Can the supplier share what their inspection actually catches — not just a tolerance claimed on a spec sheet, but where in the process it’s verified?
On our own line, ground bits go through a first-piece check confirming outer diameter and runout at the start of each batch, followed by in-process spot checks through the run — the same discipline described in the last article, applied specifically to straightness and radial runout rather than diameter alone.
