★ Tapered Countersink Drill Bit with Depth Stop for Wood

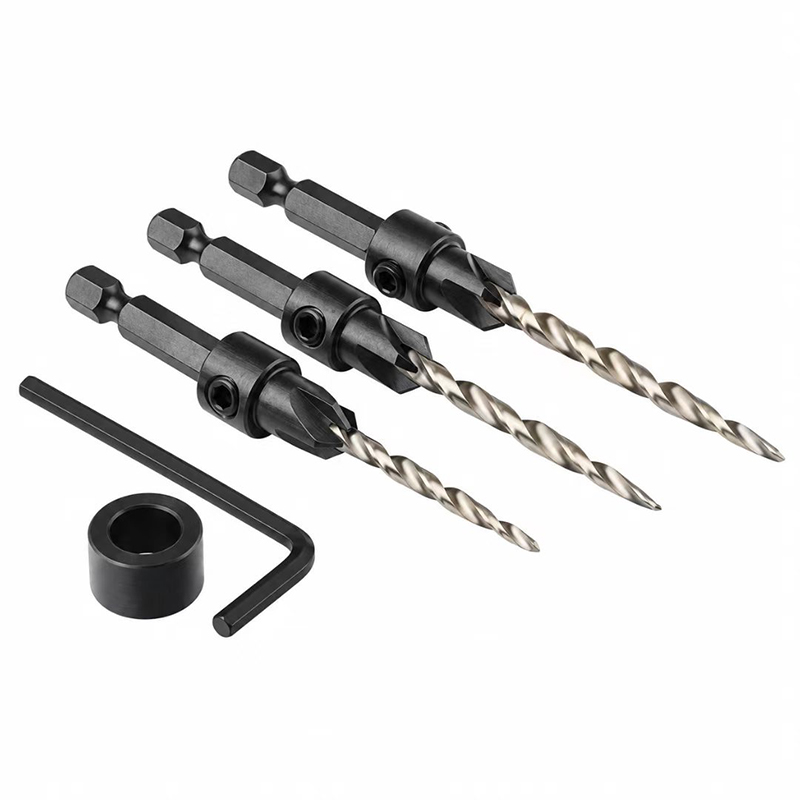

The Tapered Countersink Drill Bit with Depth Stop combines pilot drilling and countersinking in one operation. It consists of an HSS taper point drill, a 4-flute countersink cutter, and an adjustable depth stop collar.
The taper point drill creates the pilot hole for the wood screw, while the countersink cutter forms a recess for the screw head. The adjustable stop collar controls the drilling and countersinking depth, making the tool suitable for repetitive woodworking and assembly operations.
★ Key Features
·Taper Point Drill– Creates a pilot hole for wood screw installation.
· HSS Drill Bit – High Speed Steel construction for wood and wood-based panels.
· 4-Flute Countersink Cutter – Forms the countersink for recessed screw heads.
· Adjustable Depth Stop – Controls drilling and countersinking depth for repeated operations.
· Set Screw Adjustment – The stop collar can be repositioned and secured using a hex key.
· 1/4” Hex Shank – Compatible with suitable drill chucks and 1/4” hex tool holders.
· Multiple Sizes – Available for #4, #6, #8, #10 and #12 wood screws.
· Individual or Set Supply – Available as individual sizes or multi-size sets.
★ How It Works
The taper point drill first creates the pilot hole. As the tool advances, the 4-flute countersink cutter removes material around the hole to create the recess for the screw head.
The depth stop collar can be repositioned by loosening the set screw with a hex key. Once set, it limits the drilling depth and helps maintain consistent results across multiple workpieces.
★ Applications
Designed for pilot drilling and countersinking in:
- · Furniture manufacturing and assembly
- · Cabinet making
- · Woodworking and joinery
- · Wood screw hole preparation
- · Recessed screw installation
Suitable Materials: Softwood, Hardwood, Plywood, MDF and Particle Board.
★ Packaging & OEM Options
The drill bits can be supplied as individual sizes or multi-size sets.
Available packaging options include:
· Plastic box
· Blister card
· Multi-size set packaging
· Customized OEM packaging
OEM labeling, branding, size combinations and packaging can be arranged according to order requirements.
★ FAQ
What is a tapered countersink drill bit used for?
It is used to create a pilot hole and countersink for a wood screw in one operation. The pilot hole guides the screw, while the countersink allows the screw head to sit flush with or below the wood surface.
What does the adjustable depth stop do?
The stop collar limits the drilling and countersinking depth. This is useful when multiple holes need to be prepared to a consistent depth.
How is the depth adjusted?
Loosen the set screw with the supplied or compatible hex key, move the stop collar to the required position, and tighten the screw to secure it.
What materials can it be used on?
It is designed for softwood, hardwood, plywood, MDF and particle board.
What sizes are available?
The standard range covers #4, #6, #8, #10 and #12 wood screws, with corresponding tapered drill sizes.
Can the drill bits be supplied as a set?
Yes. Individual sizes and multi-size sets are available. Size combinations and packaging can also be configured for OEM orders.
Is OEM packaging available?
Yes. Plastic boxes, blister cards and customized OEM packaging are available according to order requirements.
-
