In automotive body repair, one of the most common mistakes technicians make when separating panels is reaching for a standard twist drill. The result is almost always the same: the bit punches straight through both layers of sheet metal, leaving the lower panel damaged and creating extra work that could have been avoided entirely.
Spot weld drill bits exist precisely to prevent this. But not all spot weld bits are the same — material choice, geometry, and manufacturing quality all affect how cleanly and how long they perform. This guide explains what spot weld drill bits are, why M35 cobalt HSS makes a meaningful difference, and how to choose the right size for your application.
What Is a Spot Weld?
During vehicle manufacturing, body panels — door skins, fenders, rocker panels, rear panels, A/B pillars — are assembled using resistance spot welding. Two overlapping steel sheets are pressed together and an electric current is applied, generating localized heat. The steel melts and fuses into a small round nugget, typically 6–10mm in diameter.
A single body panel may be held in place by dozens of spot welds. When a panel needs to be repaired or replaced, those welds must be broken. The challenge: the weld nugget is harder than the surrounding base metal — it has been melted and quench-cooled, which raises its hardness considerably. This is exactly what makes standard twist drills a poor choice for the job.
What Makes a Spot Weld Drill Bit Different
A spot weld drill bit is a purpose-built cutting tool with two features that a standard twist drill does not have:
• A center pilot tip (also called a center point) that self-centers on the weld spot and prevents the bit from walking across the panel surface.
• A cutting geometry designed to remove only the weld nugget — and stop naturally at the panel interface, without penetrating the lower sheet.
In practice, this means even a technician without specialized training can remove a spot weld cleanly, leaving the lower panel intact for reuse or minimizing damage to structural areas that do not need replacement.
A standard twist drill, by contrast, has a conventional point geometry that bites aggressively. Without a self-centering tip, it tends to walk. And because it is designed to drill through material — not stop at a specific depth — it easily punches through both panels before the operator can react.
Product Specifications
| Parameter | Value |
| Material | HSS-Co M35 (5% Cobalt) |
| Center Point | Yes — self-centering pilot tip |
| Cutting Diameter | 6mm / 8mm / 10mm |
| Manufacturing | 100% Full Ground Surface |
| Finish Options | Bright (Uncoated) / Amber / Black Oxide |
| Shank Type | Straight Shank |
| Application | Spot weld removal on automotive body panels (door skins, fenders, rocker panels, rear panels) |
Why M35 Cobalt HSS - Not Standard M2
Most economy-grade spot weld bits are made from standard M2 high-speed steel. M2 is a capable general-purpose HSS material, but it has a meaningful weakness in spot weld applications: the weld nugget zone is significantly harder than the surrounding panel, and cutting it generates heat quickly, especially in the repeated start-stop rhythm of panel work.
M35 (HSS-Co) adds 5% cobalt to the alloy. This changes two things that matter directly in this application:
• Higher red hardness: M35 retains its cutting-edge strength at elevated temperatures. When drilling through a hardened weld nugget — or doing back-to-back welds in a busy bodyshop — the tip holds up instead of softening and wearing out prematurely.
• Better wear resistance: The cobalt content hardens the overall matrix, meaning the cutting edge stays sharper through more welds. For professional shops where one technician might remove 50 or more spot welds in a day, this translates directly into fewer tool changes and lower cost per weld over time.
| Property | M2 (Standard HSS) | M35 (HSS-Co, 5% Co) |
| Red Hardness | Good | Excellent |
| Wear Resistance | Moderate | High |
| Performance on hardened welds | Acceptable | Superior — fewer tip failures |
| Tool Life (spot weld work) | Shorter | Significantly longer |
| Cost-efficiency for professional use | Lower upfront, higher replacement cost | Higher upfront, lower cost per weld |
The trade-off is a higher upfront cost per bit. For low-volume occasional use, M2 may be sufficient. For professional bodyshops and collision repair operations running daily production, M35 is the more cost-effective choice across the tool's working life.
Full Ground Surface: Why Manufacturing Quality Matters
All Jiacheng Tools spot weld drill bits are 100% full ground — meaning the cutting geometry, flank faces, and center point are all precision-ground after heat treatment, not just the tip.
For a spot weld bit specifically, the center pilot point is the most critical dimension. If it is off-center by even a fraction of a millimeter, the bit will not sit true on the weld, and the self-centering function is compromised. Full ground manufacturing ensures the pilot tip runs concentric with the body of the bit, so it engages the weld consistently.
For wholesale buyers and distributors, this is the difference between a product that generates returns and complaints versus one that technicians trust and reorder.

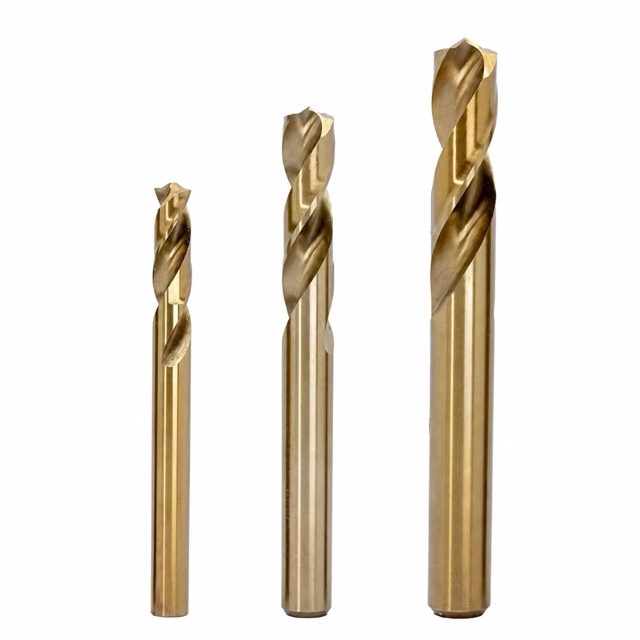

Size Guide: 6mm / 8mm / 10mm
| Size | Typical Spot Weld Type | Common Panel Applications |
| 6mm | Small nugget / thin gauge steel | Inner door skins, thin floor panels |
| 8mm | Standard automotive spot weld (most common) | Fenders, rockers, A/B pillars, rear panels |
| 10mm | Large nugget / structural welds | Structural reinforcement panels, frame sections |
When in doubt, 8mm covers the vast majority of standard automotive spot welds. For heavy-duty restoration or structural panel work, having 10mm available is practical. A set covering all three sizes gives technicians flexibility across different vehicle platforms and model years.
Finish Options: Bright, Amber, or Black Oxide
The bits are available in three surface finishes, which affects surface hardness and corrosion resistance slightly, but more importantly gives distributors flexibility to match what their market expects:
• Bright (uncoated): The natural ground steel surface. No coating added. Preferred where coating adhesion consistency is a concern, or for markets that want uncoated tooling.
• Amber color: A light oxidation finish applied during final heat treatment. Common in European and general industrial markets.
• Black oxide: A steam-treated surface finish that provides moderate corrosion resistance and reduces surface friction slightly. Common in North American automotive aftermarket packaging.
None of these finishes meaningfully change cutting performance — the base material and geometry are what matter. Finish choice is primarily a packaging and market expectation decision.
Who Uses Spot Weld Drill Bits
The primary buyers of spot weld drill bits are:
• Automotive body repair shops and collision centers — the largest end-user segment, using spot weld bits daily for panel replacement work.
• Automotive restoration specialists — working on classic vehicles where original panels need careful separation without damage.
• Vehicle disassembly and salvage operations — where speed and tool life are both important.
• Automotive training institutions — where consistent, predictable tool performance is important for teaching correct technique.
For wholesale distributors, this product sits naturally alongside panel repair kits, body filler tooling, and general automotive sheet metal tooling. It is a consumable with repeat purchase cycles — once a bodyshop specifies a brand of spot weld bit that performs reliably, they tend to reorder the same product.
Summary
Spot weld removal is a precision task. Using the wrong tool — a standard twist drill — damages the lower panel and creates unnecessary rework. A purpose-built spot weld drill bit, with a self-centering pilot point and geometry designed to stop at the panel interface, makes the job clean and repeatable.
M35 cobalt HSS is the right material choice for professional-grade spot weld bits: better red hardness, better wear resistance, and a longer working life compared to standard M2 — particularly important in the high-heat, repeated-use conditions of spot weld removal work.
Jiacheng Tools HSS-Co M35 Spot Weld Drill Bits are available in 6mm, 8mm, and 10mm, with Bright, Amber, and Black Oxide finish options. Suitable for OEM supply, distributor private label, and retail kit inclusion. Contact us for wholesale pricing and lead times.
